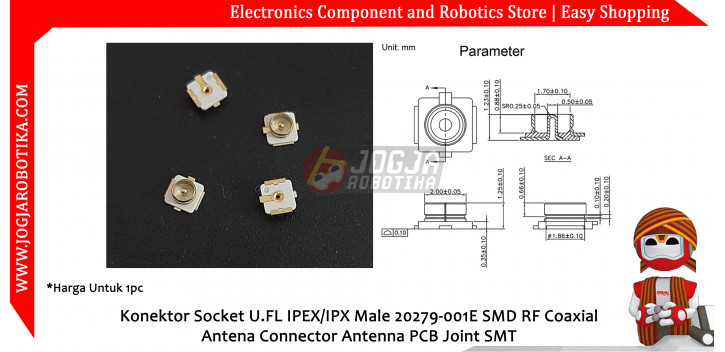

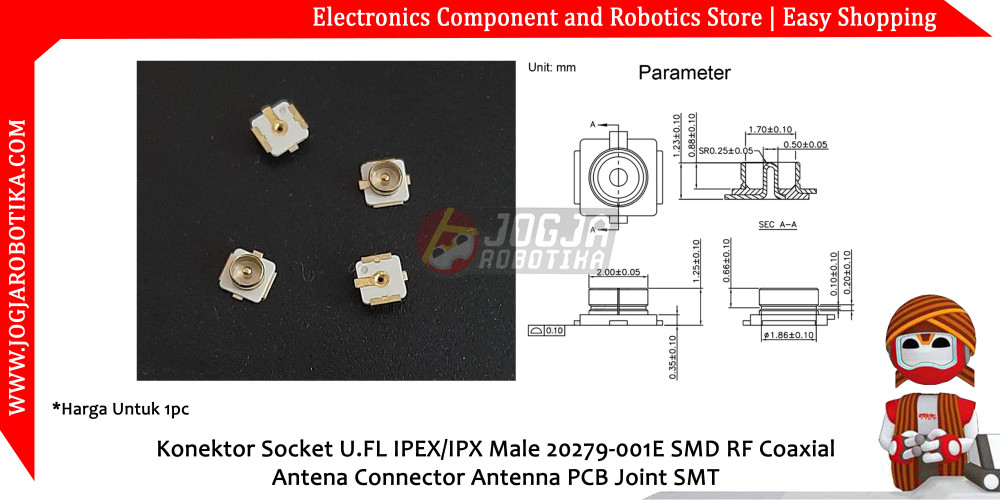

Konektor Socket U.FL IPEX/IPX Male 20279-001E SMD RF Coaxial Antena Connector Antenna PCB Joint SMT

Konektor Socket U.FL IPEX/IPX Male 20279-001E SMD RF Coaxial Antena Connector Antenna PCB Joint SMT

Product Description:
Material: the main material is copper, the outer shell is gold-plated
Frequency range: 0-4GHZ
Characteristic impedance: 50 Ohm
Insulation resistance: 500M Ohm Min
Withstand voltage: 200V AC
Standing wave ratio: 1.3Max (0-3GHZ 1.2Max)
Working temperature: -40+85°C

Suitable for communication products such as computers, tablets, wireless modules, etc.

Feature:
1. Compatible with IPEX MHF, MHFII and Hirose U.FL
2. Housing: LCP, UL94V-O, white
3. Contact: Brass, gold plating
4. Ground Contact: phosphor bronze. gold plating
