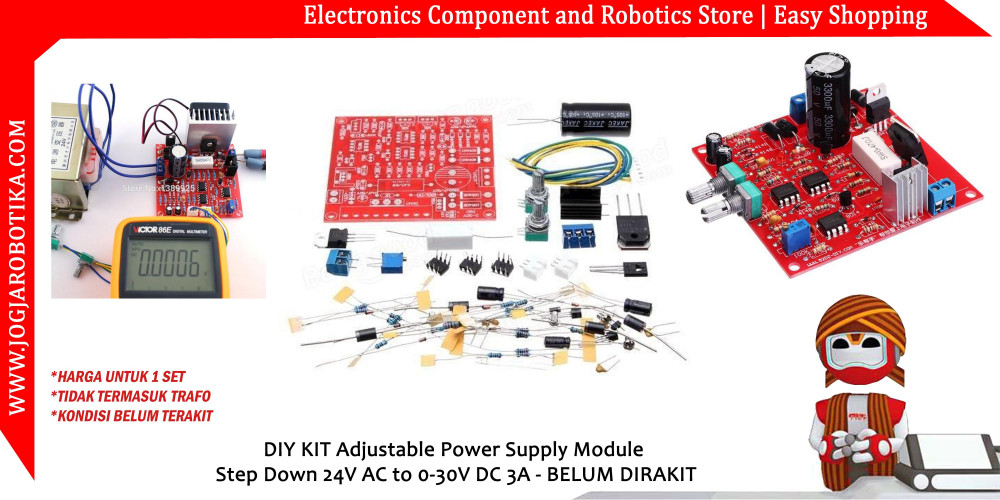

DIY KIT Adjustable Power Supply Module Step Down 24V AC to 0-30V DC 3A - BELUM DIRAKIT

DIY KIT Adjustable Power Supply Module Step Down 24V AC to 0-30V DC 3A - BELUM DIRAKIT

INPUT : 24V AC (dari trafo) bisa juga dari 12~30V AC
OUTPUT : Bisa diatur dari 0~30V DC (stabil meskipun input turun naik)
Arus Out : Bisa diatur/dibatasi 2mA ~ 3Ampere (Constant Current)

*Belum termasuk trafo (rekomendasi trafo output sekunder 24V 3A)
*Output maksimal (batas atas) tergantung tegangan trafo
*Sebaiknya TR final (D1047) diberi tambahan pendingin alumunium/+kipas
*Potensiometer dapat dipasang menggunakan kabel agar panjang


D5, D6, D9, D10 IN4148
D7, D8 = 5,1V zener diode
D11= IN4001/2
D12 = LED
QI = 9014 /BC547/BC548
Q2 =2SD882/2N2219/BC141/BC286
Q3 = 9015/BCS57/BC558/BC327
Q4 = D1047/TIP3055/2N3055
RI = 2k2 (1-2W)
R2 = 82 Ohm
R3 = 220 Ohm
R5,R6,R13,R20,R21 = 10K
R7 = 0.47 Ohm 5W
R8 = 27k
R19 = 2k2
270k - 0.25 W
R12, R18= 56k
R14 = 1k5
R15,R16 = 1k
R17 = 33 Ohm
R22 = 3k9
- 100k (linear trimmer potentiometer)
RVI-
PI, P2 = 10k (linear potentiometer)
Cl = 3300 uF / 50V (electrolytic capacitor)
C2, C3 = 47 pF / 50V (electrolytic capacitor)
C4 = 100nF (polyester capacitor)
C5 = 220nF (polyester capacitor)
C6, C9 (ceramic capacitor)
C7 = 10 uF / 50V (electrolytic capacitor)
C8 = 330pF (ceramic capacitor)
LM7812
