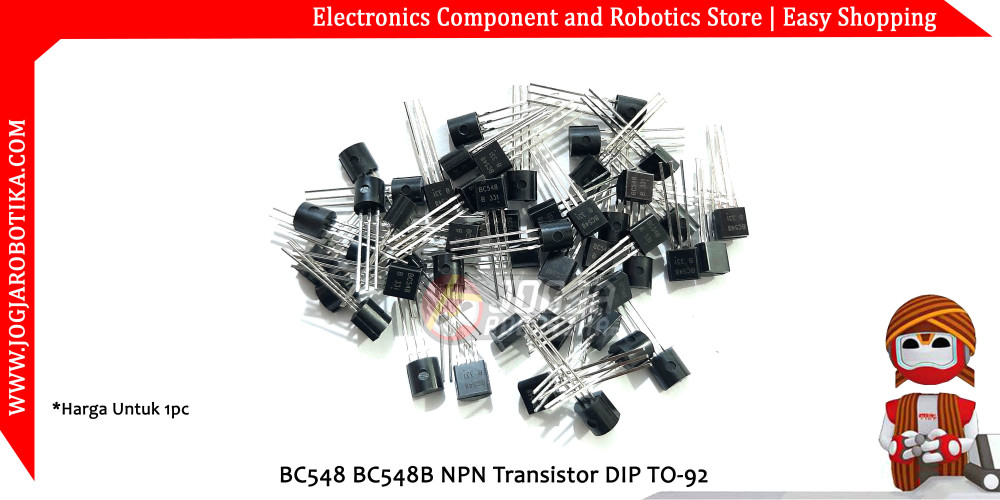

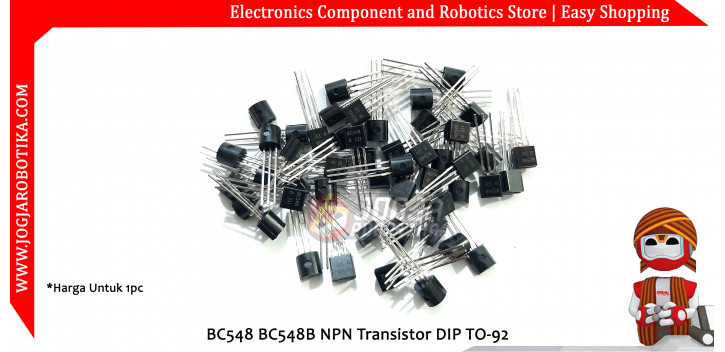

BC548 BC548B NPN Transistor DIP TO-92

BC548 BC548B NPN Transistor DIP TO-92

   Type Designator: BC548B
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.5 W
   Maximum Collector-Base Voltage |Vcb|: 30 V
   Maximum Collector-Emitter Voltage |Vce|: 30 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 200 MHz
   Collector Capacitance (Cc): 4.5 pF
   Forward Current Transfer Ratio (hFE), MIN: 200
   Noise Figure, dB: -
   Package: TO-92

Datasheet
