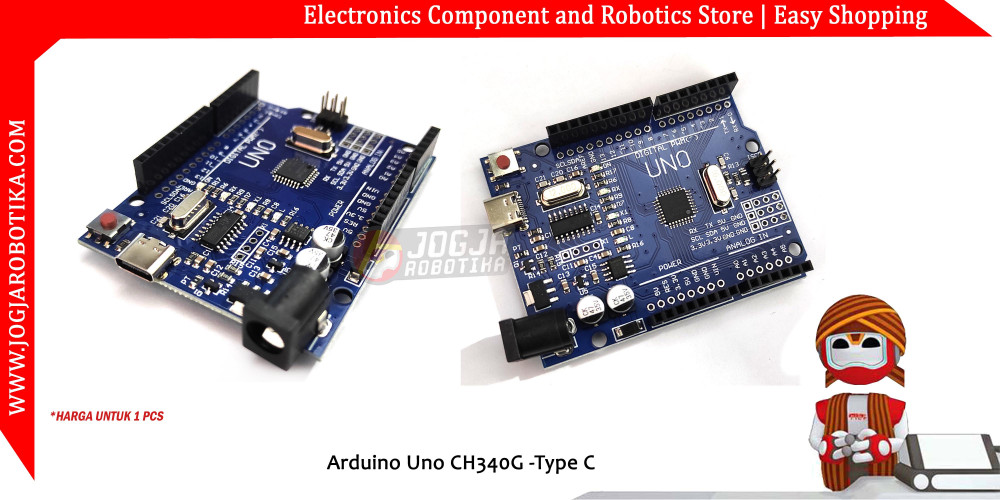

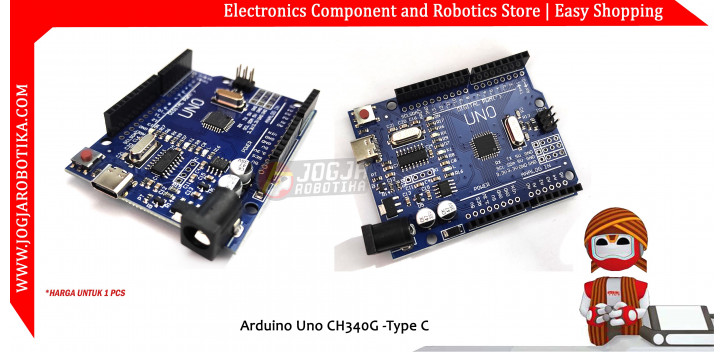

Arduino Uno ATmega328PB SMD CH340G / FTDI (kw) IC-Type C

Here for the driver software : http://www.wch.cn/downloads.php?name=pro&proid=65

Before connecting the Nano to your USB port:

1. Download the “ch341ser,exe” file and run it.The software extracts about 8 files.
2. The software asks whether it can install the CH341SER.INF driver for the CH340 chip (Version 11/04/2011, 3.3.2011.11). Click INSTALL
3. A Windows message asks whether the driver has installed correctly. Click YES.
4. Connect your Nano.
5. From Control Panel, open Device Manager and Ports. If installed correctly you should see an entry “USB-SERIAL CH340 (COMXX)

1. Add the following URL to the Arduino Boards Manager (File->Preferences).

   https://github.com/watterott/ATmega328PB-Testing/raw/master/package_m328pb_index.json


2. Update the Arduino AVR Boards to version 1.6.22 or higher via the Boards Manager (Tools->Boards->Boards Manager).

3. Install the ATmega328PB Boards via the Boards Manager (Tools->Boards->Boards Manager).

DAN SAAT UPLOAD PROGRAM BISA CEK GAMBER NO.2

GitHub - watterott/ATmega328PB-Testing: Atmel/Microchip ATmega328PB support for Arduino IDE

.

.

Kabel jumper untuk arduino cek disini

.

Download Driver CH340

.
