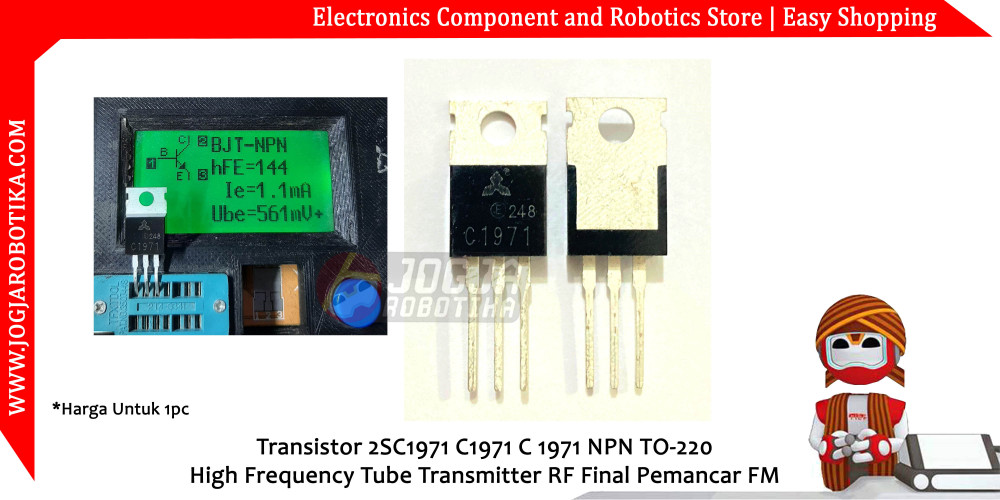

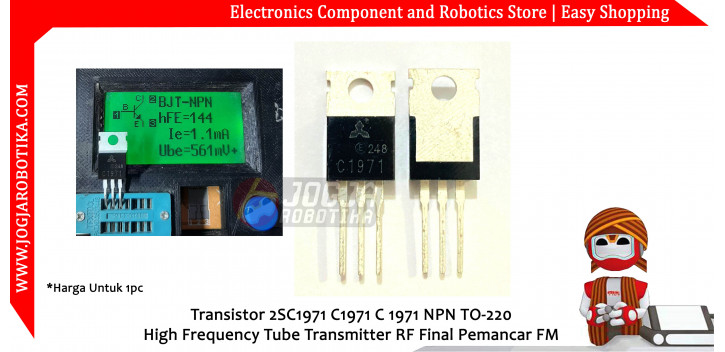

Transistor 2SC1971 C1971 C 1971 NPN TO-220 High Frequency Tube Transmitter RF Final Pemancar FM

Transistor 2SC1971 C1971 C 1971 NPN TO-220 High Frequency Tube Transmitter RF Final Pemancar FM

   Type Designator: 2SC1971
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 12 W
   Maximum Collector-Base Voltage |Vcb|: 36 V
   Maximum Collector-Emitter Voltage |Vce|: 18 V
   Maximum Emitter-Base Voltage |Veb|: 4 V
   Maximum Collector Current |Ic max|: 1 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 175 MHz
   Forward Current Transfer Ratio (hFE), MIN: 10
   Package: TO220

datasheet click
