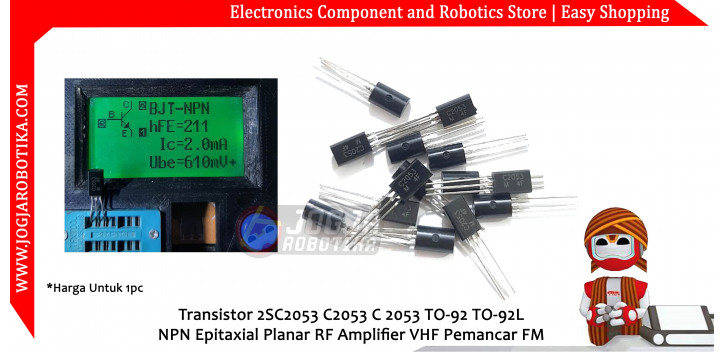

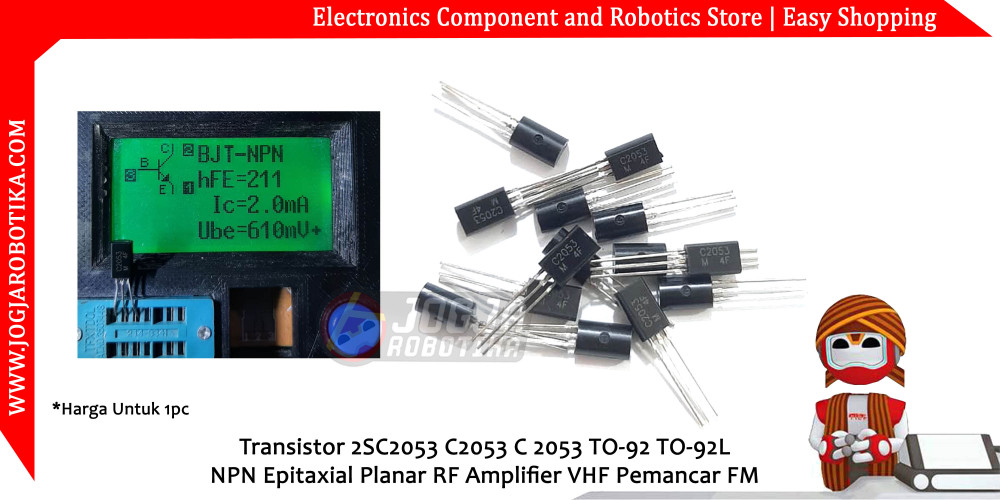

Transistor 2SC2053 C2053 C 2053 TO-92 TO-92L NPN Epitaxial Planar RF Amplifier VHF Pemancar FM

Transistor 2SC2053 C2053 C 2053 TO-92 TO-92L NPN Epitaxial Planar RF Amplifier VHF Pemancar FM

   Type Designator: 2SC2053
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.6 W
   Maximum Collector-Base Voltage |Vcb|: 40 V
   Maximum Collector-Emitter Voltage |Vce|: 17 V
   Maximum Emitter-Base Voltage |Veb|: 4 V
   Maximum Collector Current |Ic max|: 0.3 A
   Max. Operating Junction Temperature (Tj): 135 °C
   Transition Frequency (ft): 250 MHz
   Forward Current Transfer Ratio (hFE), MIN: 10
   Package: TO92L
