TF-C6UW

Referensi L1G16

Stok kosong

Rp. 399.000

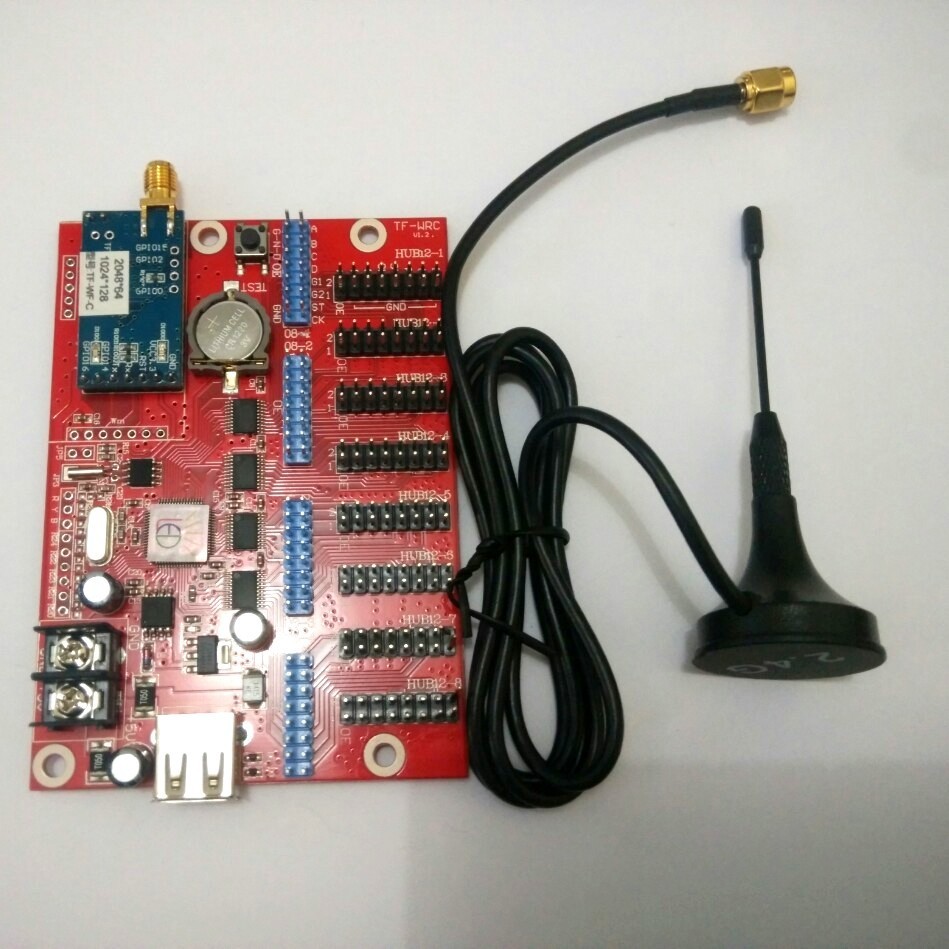

Led kontroler TF C6UW memiliki 4pcs Port Hub08 dan 8pcs Port HUB 12. Bisa di program dengan wifi maupun USB

Technical parameters:

Model State	led matrix controller Batch supply
Function introduction	More arbitrary division,dazzle colour border area,WIFI communication
Usage	indoor/outdoor
pixels	Single colour 2048x64;1024x128 Double colour 1024x64;512x128
USB function	USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB.
Ports	four 08 port; eight 12 ports
Scanning mode	support 1/16,1/8,1/4,1/2,Scan the monochrome,double color module.
Storage	2m
Program number	Support at most 200 programs,each program support 16 partitions simultaneous play,each image-text 200 messages.(Quantity in storage space under the premise of memory)
Display	rain,fountain,scroll and much more
Border	support many Color border,Picture border
Flash format	support GIF,SWF
Image format	support BMP,JPG,GIF,WMF,ICO
Brightness	Level 16 highlighted,support manual
screen switch	manual
Test buttons	Test buttons on-board,can switch over to test mode and color test mode.
Extension function	Temperature sensor/Temperature&humidity sensor(Diagram for connection),RF,RS485 networking,Monochrome expand height,Through to 75 full-color interface.
Electrical parameters	+5V DC(4.5V~6V),Power consumption<0.5W
Working temperature	-30℃~70℃
Size	90mm70mm,Hole spacing:65mm54mm
