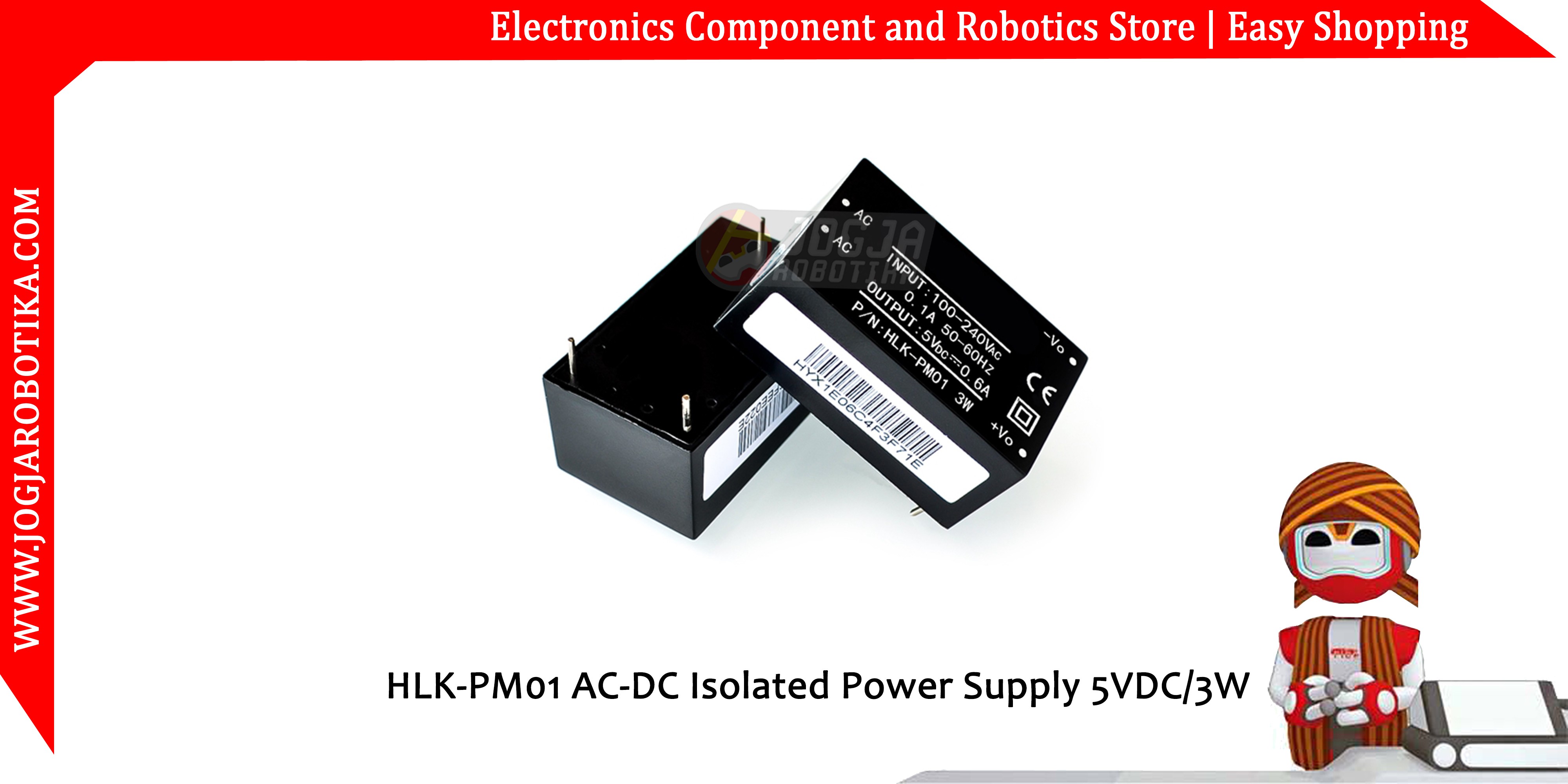

HLK-PM01 AC-DC Isolated Power Supply 5VDC/3W

Referensi T238B412

Stok 20

Rp. 38.000

Product Features :

1. meet the UL , the CE requirements , Ultra-thin , ultra-small

2 . Full voltage input ( 90~264Vac )

3 . Low ripple , low noise

4 . Output overload short circuit protection

5 . High efficiency and high power density

6 . Product design meets EMC and safety testing requirements

7 . Low power consumption, green and environmental protection, no-load loss <0.1W

8 . 100% load aging and testing

Environment Condition

Item Name	Technical Criteria	Unit
Operation Temperature	-20—+60	℃
Store Temperature	-40—+80	℃
Relative humidity	5—95	%
Cooling way	Cooling by radiation
Atmospheric pressure	80—106	Kpa
Sea level elevation	≤2000	m
Vibration	Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes

Input characteristics (test at room temperature 20 ℃).

Item Name	Technical Criteria	Unit
Rated input voltage	100-240	VAc
Input voltage range	90-264	VAc
Maximum input current	≤0.2	A
Input current surge	； ≤10	A
maximum input voltage	≤270	VAc
Enter slow start	≤50	mS
Input Low Voltage Efficiency	Vin=110VAc，Output full-load≥69	%
Input High Voltage Efficiency	Vin=220VAc，output full-load≥70	%
Long-term reliability	MTBF≥100，000	h
Load rated output voltage	+5±0.1	VDc
Full rated output voltage	+5±0.2	VDc
Short-term maximum output current	≥1000	mA
The maximum output current for a long time	≥600	mA
Voltage Regulation	±0.2	%
Load Regulation	±0.5	%
Output ripple and noise (mVp-p)	≤50 Rated input voltage, full load. Using 20MHz of bandwidth, The load side 10uF and 0.1uF capacitor to be tested.	mV
Switch overshoot amplitude	(Rated input voltage and output load plus 10%)≤5	%V_O
Output over-current protection	150-200% of the output maximum load	A
Output short circuit protection	Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal
