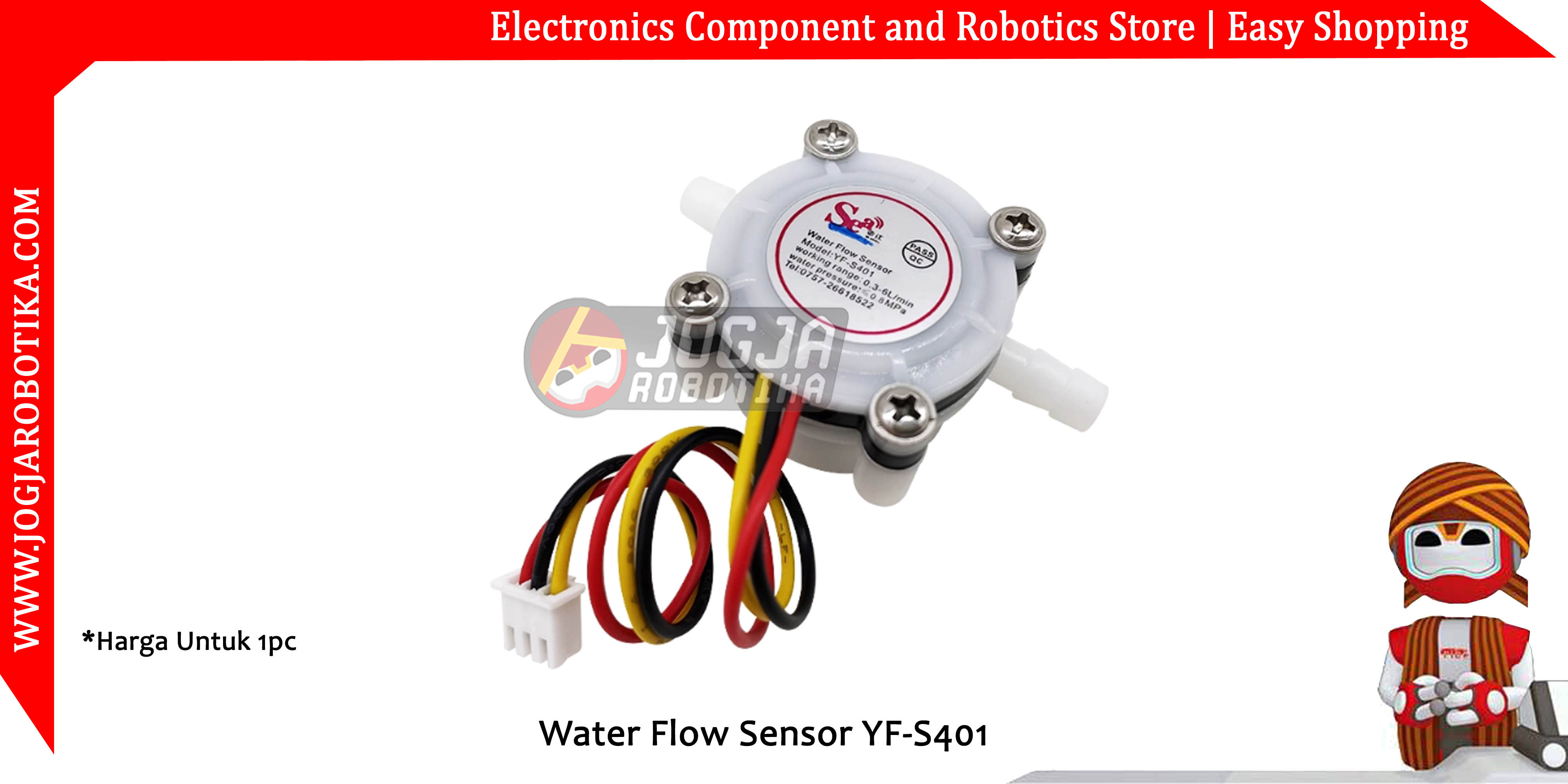

Water Flow Sensor YF-S401
Referensi
L1D25
Stok 20
Rp. 35.000
Diskon Rp. 1.000 berlaku mulai pembelian 10 pcs.
Water Flow Sensor YF-S401
Specifications
Working Voltage: DC 3.5V~12V
Maximum Working Current: 15mA @ 5V DC
Flow Rate Range: 0.3~6L/min
Connection: 6mm (external diameter)
Inlet Water Pipe Diameter: 2.5-4mm
Load Capacity: ≤10mA (DC 5V)
Operating Temperature: ≤80℃
Liquid Temperature: ≤120℃
Operating Humidity: 35%～90%RH
Water Pressure: ≤0.8MPa
Storage Temperature: -25～+ 80℃
Storage Humidity: 25%～95%RH
Connections
Red: Power In
Black: Ground
Yellow: Signal Output
