Katup Kran Air Elektrik 12V DC 12mm Solenoid Water Valve Nylon NC

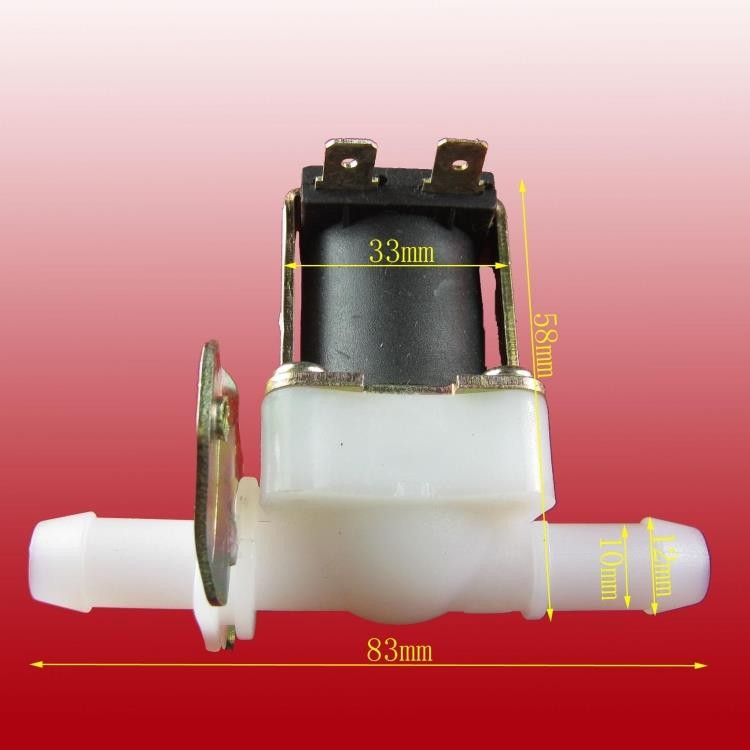

DC 12V Solenoid Valve 12mm

Normally closed inlet valve:
– First, the product is stable, durable, safe, reliable, high sensitivity, quality assurance, beautiful appearance.
– Second, the main technical indicators:

1. The use of the environment is not an altitude over 2500 meters; ~ 106KPa atmospheric pressure 86;
2. Ambient temperature + 1 C ~ + 45 C; water temperature is 0 C ~ + 60 C; storage and transport temperature – 30 ~ 60C;
3. Protection class IP00; relative humidity <=95%;
4. Operating parameters:
   – Rated working voltage:
   DC12V exchange and other (production line detection voltage to fall to 15%); Power rating: 4W, 5W, etc;
   – Rated operating voltage (V) : DC12V
   – Power (W) :5W
   – Rated operating current (A) : 0.42
   – DC resistance (20 C) (Ohm) : 27.7 +- 0.6
   – Operating Pressure: 0.02 ~ 0.8MPa; can withstand the static pressure of not less than 1.6Mpa;
   – Working life: imported stainless steel springs and high-quality materials, to work less than 20 million times (100 times a day by Job count, life is more than five years);
