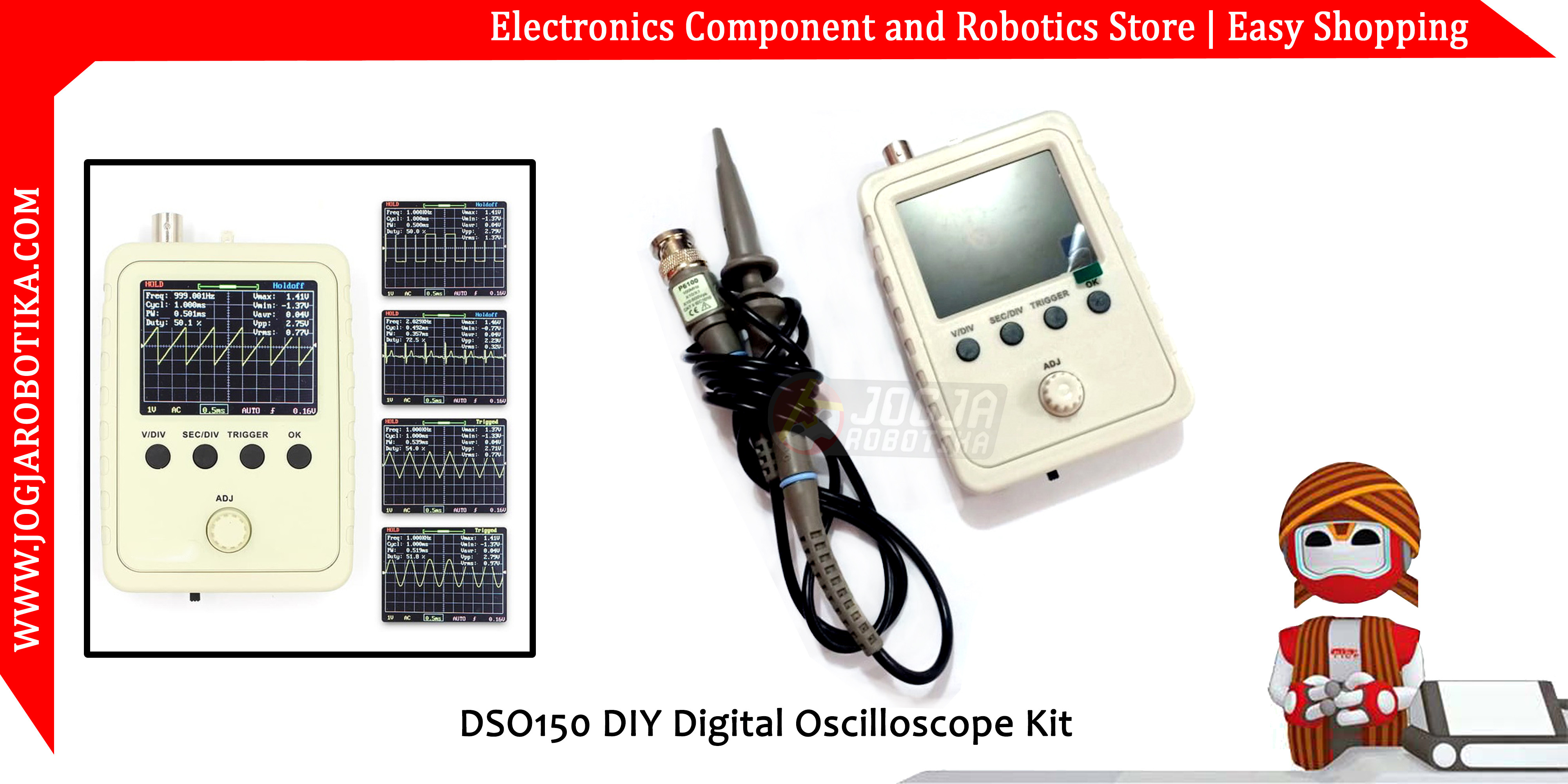

DSO150 DIY Digital Oscilloscope Kit

DSO150 DIY Digital Oscilloscope Kit

Shell oscilloscope uses 9V DC power supply (the power supply voltage should not exceed 10V! Otherwise it may burn the machine). The kit itself does not include a power supply. Users need to prepare the power supply by themselves. The power supply current should be able to provide more than 200mA.

• Real-time sampling rate: 1Msps
• Precision: 12Bit
• Sampling buffer depth: 1024 bytes
• Analog bandwidth: 0-200KHz
• Vertical sensitivity: 5mV/Div – 20V/Div (according to the 1-2-5 way)
• Adjustable vertical displacement, with instructions
• Input impedance: 1MΩ
• Input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
• Coupling methods include DC/AC/GND
• Horizontal time base range: 10μs/Div-50s/Div (increase by 1-2-5)
• With automatic, regular and single trigger modes, it is convenient to capture instant waveforms
• Can be triggered by rising or falling edge
• Trigger level position is adjustable, with indication
• Observe the waveform before the trigger (negative delay)
• Freeze the waveform display at any time (HOLD function)
• Comes with 1KHz /3.3V square wave test signal source
• With digital display of waveform parameters, the parameters that can be displayed are: frequency, period, pulse width, duty cycle, value, minimum value, average value, peak-to-peak value, effective value
• Save/recall the waveform, the waveform does not disappear when turned off

.

Dimensi: 102x73x21mm
