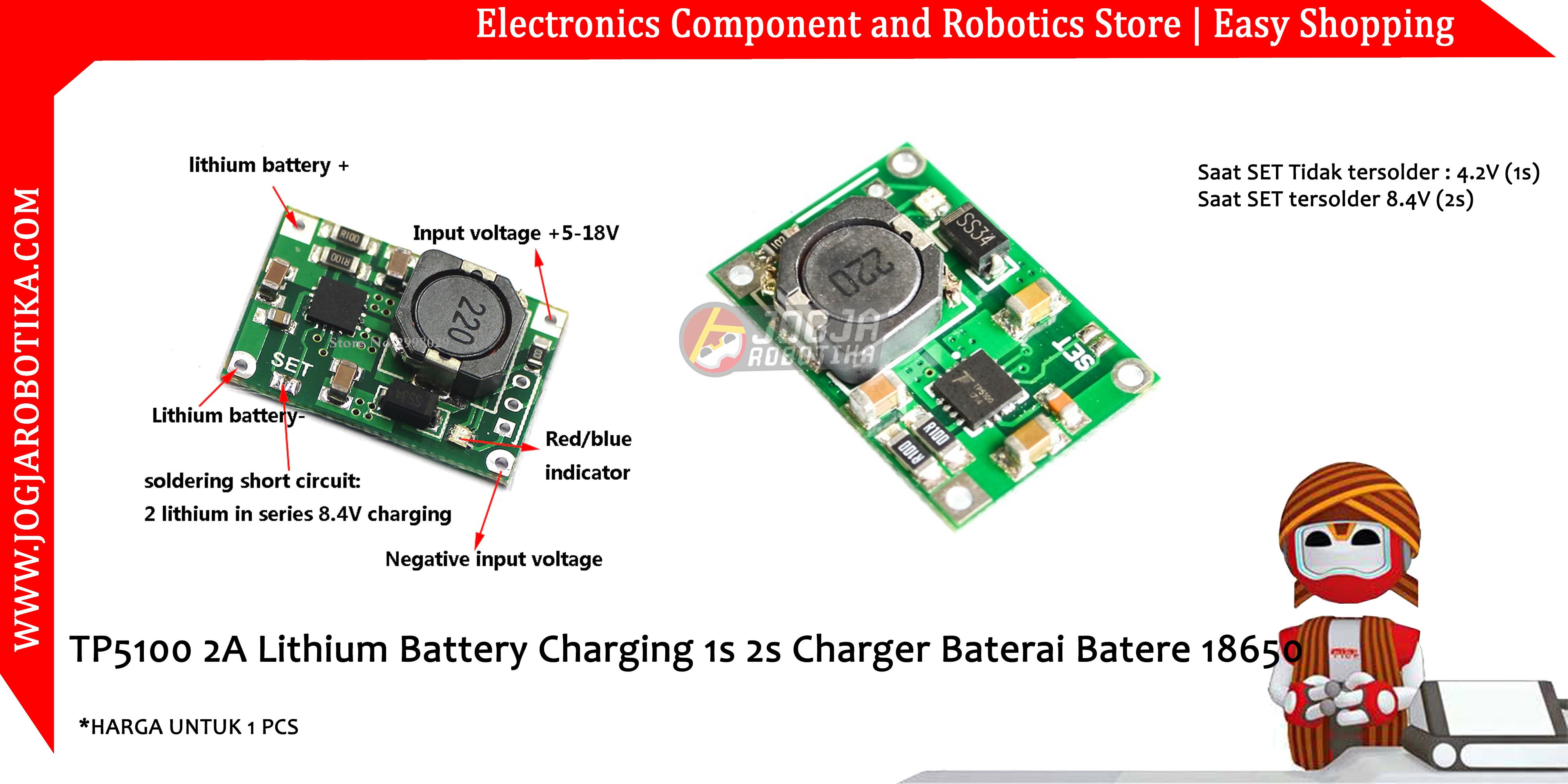

TP5100 2A Lithium Battery Charging 1s 2s Charger Baterai Batere 18650

Referensi T126-L2D12

Stok kosong

Rp. 11.000

TP5100 2A Lithium Battery Charging 1s 2s Charger Baterai Batere 18650

P5100 2A Lithium Ion 18650 Battery Charger Module is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, undervoltage protection, over temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.
TP5100 have 5V-18V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three phase, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintain a smaller amount of heat.
TP5100 built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and other external Schottky diode.
Features:
  • Double 8.4v / 4.2v lithium rechargeable single
  • Programmable charge current. 0. 1A-2A
  • Programmable steady precharge current 10% -100%
  • Wide operating voltage, maximum reach I8V
  • Red and green LED charge status indicator
  • Chip temperature protection, overcurrent protection, undervoltage protection
  • Battery temperature protection, reverse battery shutdown, short circuit protection
  • Switching frequency 400Khz, usable inductance 20uH and more
  • PWR_ON Power battery for switching control
