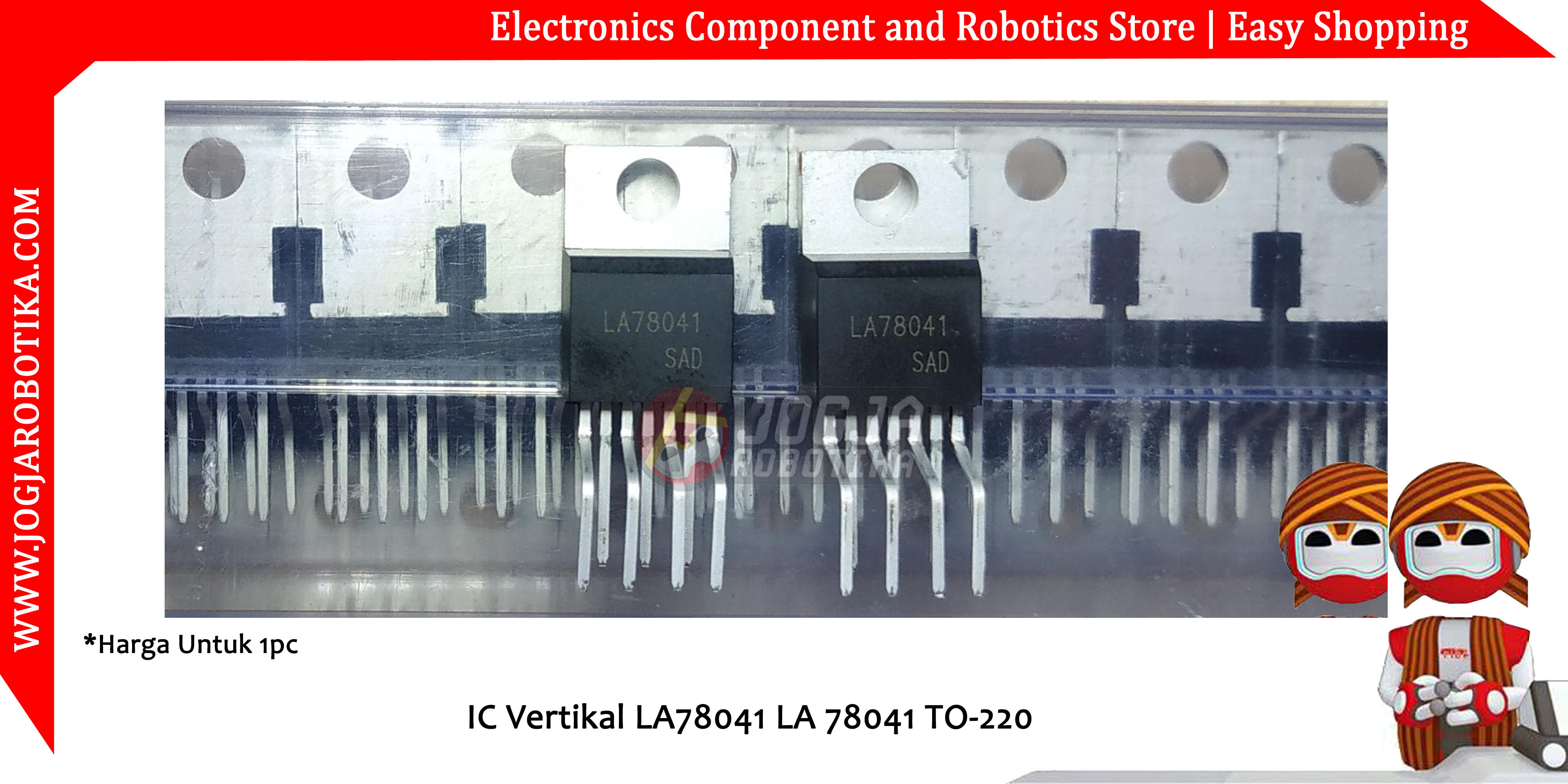

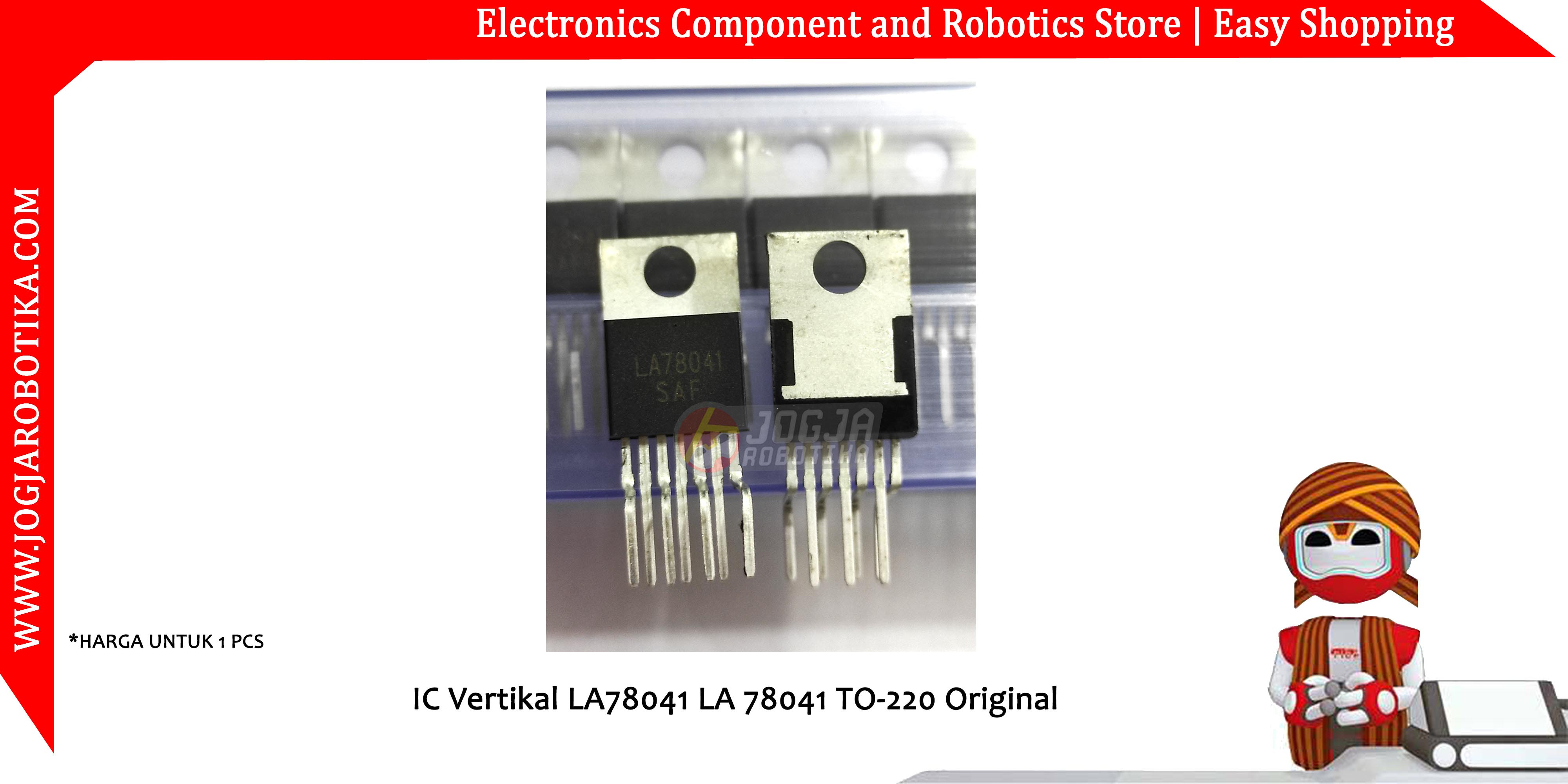

IC Vertikal LA78041 LA 78041 TO-220
Referensi
P621
Barang bekas Pakai
Stok 52
Rp. 5.000
IC Vertikal LA78041 LA 78041 TO-220
Overview
The LA78041 is a vertical deflection output IC for high image quality TV and CRT displays that supports the use of a
bus control system signal-processing IC. The sawtooth waveform from the bus control system signal-processing IC can
directly drive the deflection yoke (including the DC component). Color TV vertical deflection system adjustment
functions can be controlled over a bus system by conn
ecting the LA78041 to a our company LA768X series or
LA769XX series bus control sy
stem signal-processing IC.
Since the LA78041 provides a maximum deflection current of 2.2Ap-p, it is optimal for large size CRTs.
Functions
•Low power operation achieved by using integrated charge pump circuit.
•Vertical output circuit.
•Thermal protection circuit.
•Excellent crossover characteristics.
•Supports DC coupling
