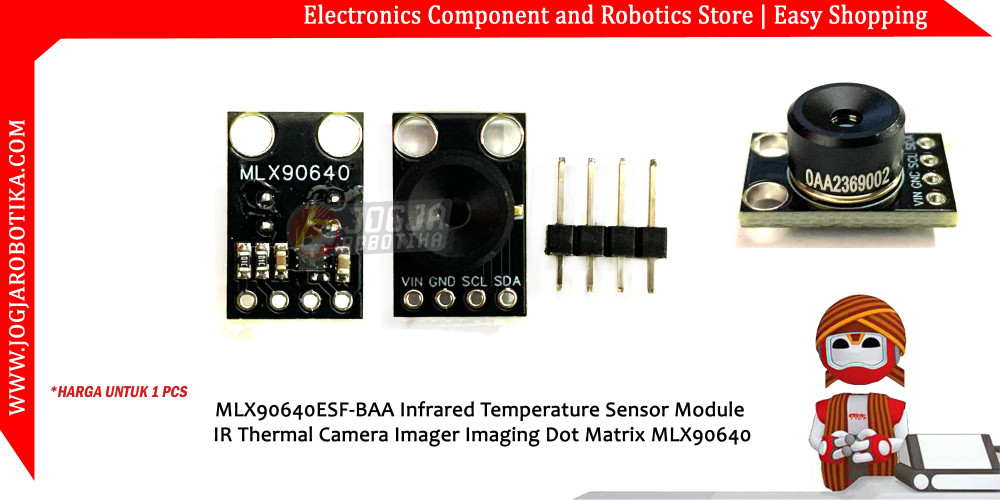

MLX90640ESF-BAA Infrared Temperature Sensor Module IR Thermal Camera Imager Imaging Dot Matrix MLX90640

MLX90640ESF-BAA Infrared Temperature Sensor Module IR Thermal Camera Imager Imaging Dot Matrix MLX90640

MLX90640BAA Field of view angle 110*75 degrees (large angle, suitable for close range measurement)

MLX90640BAB field of view 55*35 degrees (small angle, suitable for long-distance measurement)

Features:
MLX90640 far thermal Sensors array, 32x24
communication, which can be set to fast modes (rate up to 1MHz).
The noise equivalent temperature difference (NETD) is only 0.1KRMS@1Hz rate, and the noise performances is good.
Onboards levels conversion circuit, suitable 3.30V/5V working levels.
Programmable frame rate is 0.5-64Hz(0.25-32FPS).

Specifications:
Type:MLX90640ESF-BAA/MLX90640ESF-BAB
Current size: <23mA
Working voltages: 3.30V/5V
Absolute accuracy: 2℃ (room temperature 0~50℃)
Rate: 0.5~64Hz(0.25~32FPS)
Working temperature: -40~300℃
Product size: Approx.28x16mm/1.1x0.63inch
Fixing hole size: 2.0mm
