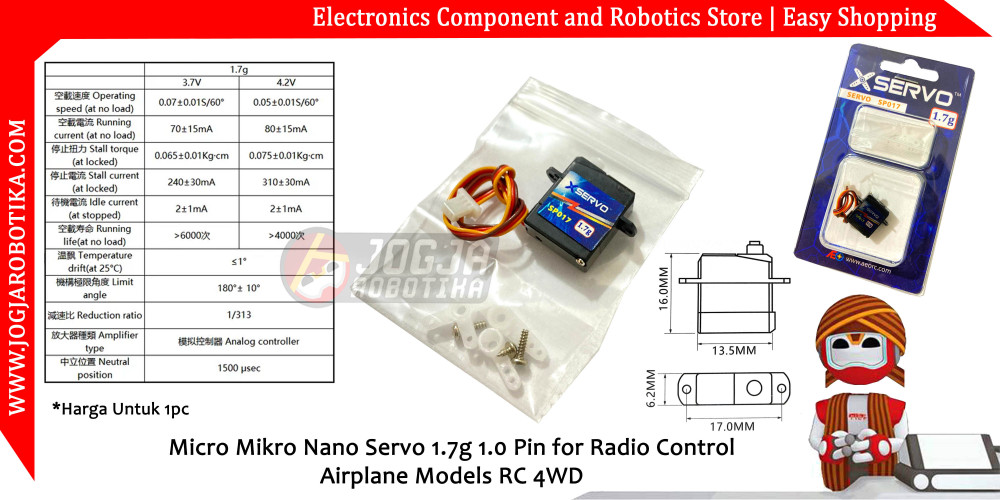

Micro Mikro Nano Servo 1.7g 1.0 Pin for Radio Control Airplane Models RC 4WD

Micro Mikro Nano Servo 1.7g 1.0 Pin for Radio Control Airplane Models RC 4WD

Features:
◆ Miniature and exquisite appearance design, ultra-light weight (only 1.7g, 2.0g including wire)
◆ Adopt Analog controller, coreless motor drive
◆ Micro servo with large torque (0.17kg.cm);
Basic parameters:
◆ Size: 13.5 x 6.2 x 20.1 mm
◆ Weight: 1.7g (excluding wire)
◆ Working voltage: 3.7~4.2V
◆ Operating speed (at no load)
3.7V: 0.07±0.01S/60°
4.2V: 0.05±0.01S/60°
◆ Running current (at no load)
3.7V: 70±15mA
4.2V: 80±15mA
◆ Stall torque (at locked)
3.7V: 0.065±0.01Kg.cm
4.2V: 0.075±0.01Kg.cm
◆ Stall current (at locked)
3.7V: 240±30mA
4.2V: 310±30mA
◆ Idle current (at stopped)
3.7V: 2±1mA
4.2V: 2±1mA
◆ Running life (at no load)
3.7V: >6000 times
4.2V: >4000 times
◆ Temperature drift (at 25°C):  ≤1°
◆ Limit angle: 180°± 10°
◆ Reduction ratio: 1/313
◆ Amplifier type: Analog controller Analog controller
◆ Neutral position: 1500 µsec
◆ Gear type: plastic gear
◆ Wire: JST1.0mm (brown-, red+, orangeS) Please distinguish before power on!
◆ Applicable fields: helicopters, fixed-wing, industrial intelligence, etc.!
