Saklar Otomatis Sensor Gerak PIR Motion Sensor Detector 12V 24V PIR-8

Saklar Otomatis Sensor Gerak PIR Motion Sensor Detector 12V 24V PIR-8

Body sensor switch is an infrared sounding controller , infrared detection switches controlled load. Users can install the human body sensor in an appropriate environment according to actual needs.

Technical parameter:
● Working temperature: -20-60 ℃
● Power supply voltage: 12-24V
● Output voltage: 12-24V
● Output: 1 loop
● Sensing distance: 8 M
● The angle of response: 60 degrees
● Output current: <6A
● Delay time: 1-10 min (adjustable)
● Dimensions: L76 Χ W35 Χ H34 mm
● Packing size: L90 Χ W65 Χ H41mm

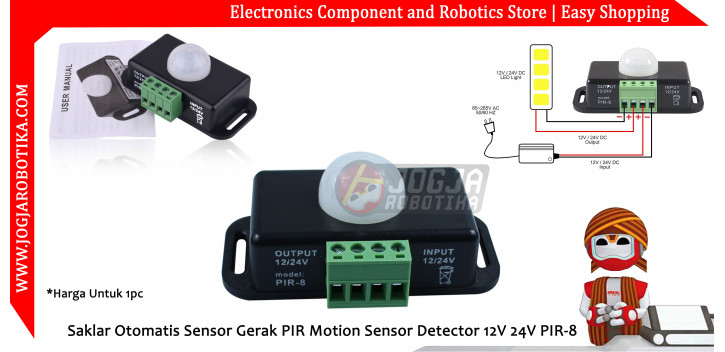

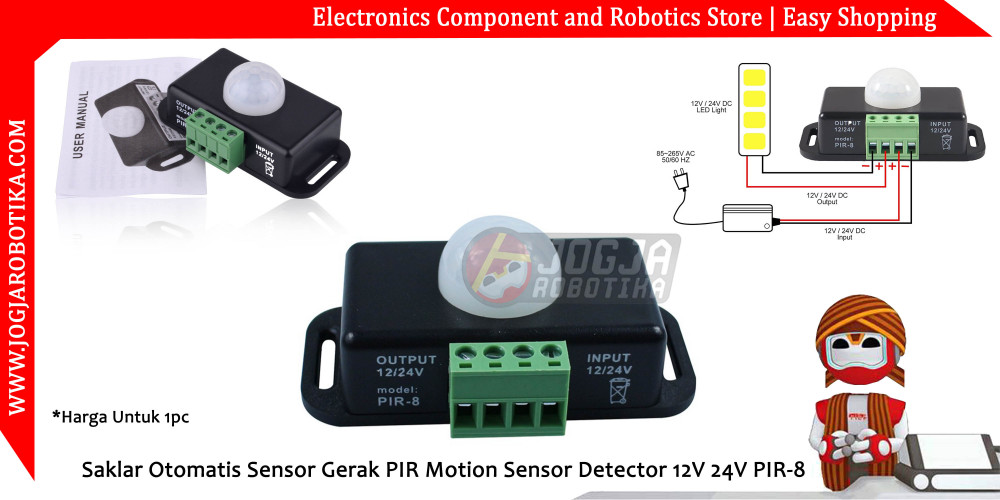

Wiring:
1. Output - ke Beban (Misalnya Lampu LED)
2. Output + ke Beban (Misalnya Lampu LED)
3. Input + Power Supply 12V/24V DC
4. Input - Power Supply 12V/24V DC
