DC0-100V / 10A LED DC dual-display digital Voltmeter Amperemeter

DC0-100V / 10A LED DC dual-display digital Voltmeter Amperemeter

Specifications:

• Working voltage of Meter itself:DC 4 - 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
• Working current of Meter itself:≤20mA
• Voltage Testing range: DC 0 - 100V
• Current Testing range: DC 0 - 10A
• Voltage resolution (V): 0.1V
• Current resolution (A): 0.01A
• Measure accuracy: 1% (± 1 digit)
• Display: 0.28" digital tube, Two color blue and red
• Refresh rate: about 300mS / times
• Dimensions:48mm*29mm*26mm
• Operation Temp: -10℃-+65℃

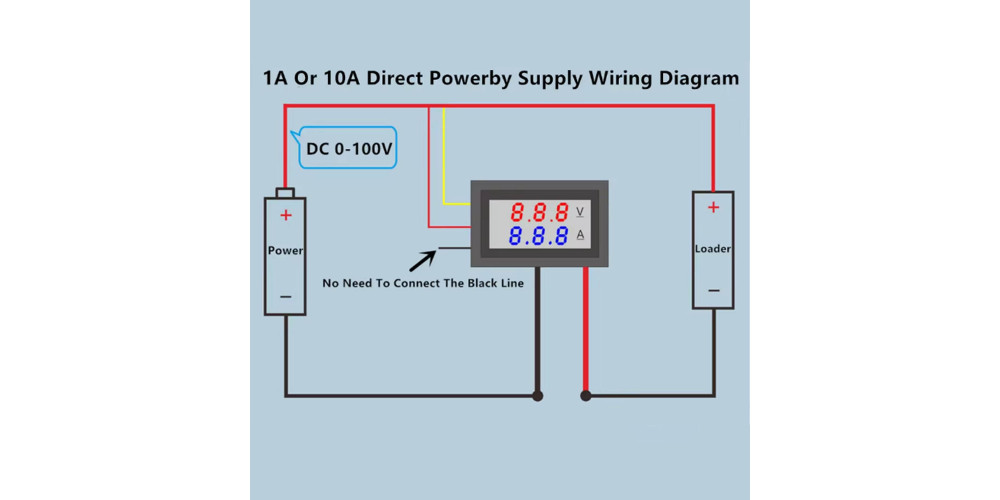

Wiring :

Merah Tebal : I beban

Hitam Tebal :Beban -

Merah kecil = VCC 4-30V

Hitam Kecil = GND

Kuning = V Veban
