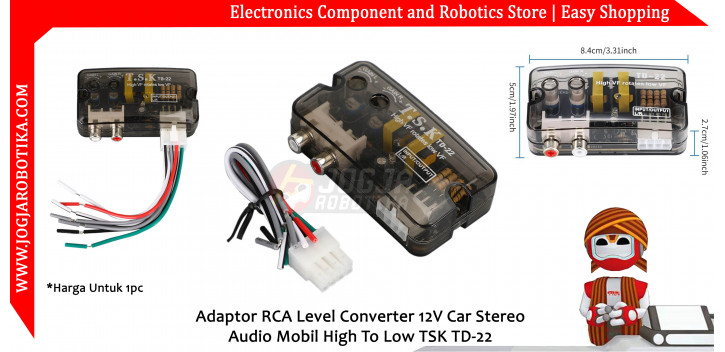

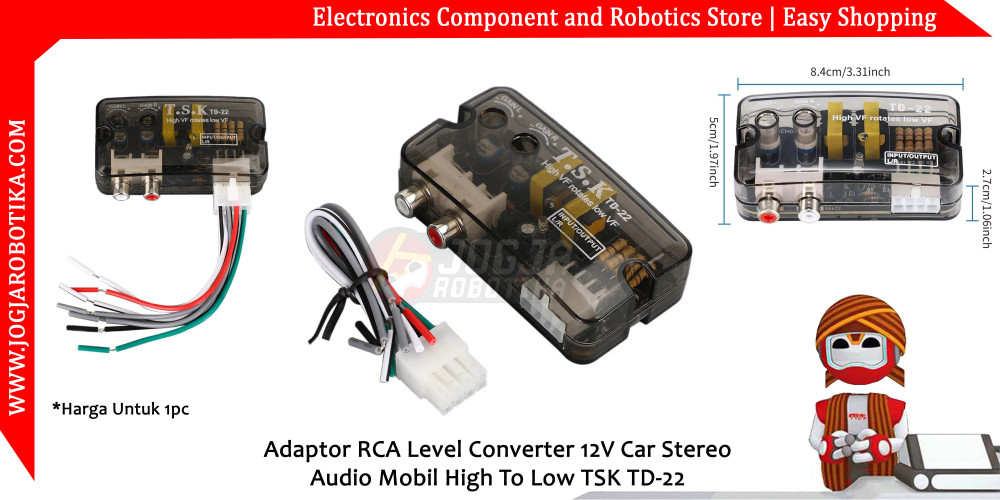

Adaptor RCA Level Converter 12V Car Stereo Audio Mobil High To Low TSK TD-22

Adaptor RCA Level Converter 12V Car Stereo Audio Mobil High To Low TSK TD-22

Product Name: Active High to Low Converter with Delay
TSK high rotation low connection method
The tabs of the wiring are counted from left to right

1.When the deferred switch circuit exports a decrease pounding to the aggrndiaer and bass cannon creation shaking off a lead plane thereby coming untied and shutting machine down electeic current disturbs the aggrand izer trumpet tssuing beat sound.

2.Built-in deferred switch citcuit output and high VF of plain vehicle audio import low VF RCA when the audio exporting the automobile resolving a first wife thereby adds the dress power aggrandizer the switch line and RCA do not output but design that.

Feature:
Converts car stereo speaker outputs to RCA outputs.
Allows the addition of 2 or 4 channel amplifiers to most stereos without RCA outputs.
Allows the addition of amplifier and subwoofer to existing factory systems.
Adjustable level matching from 0-2 volts.
For car stereos up to 80 watts.

Specifications:
Item Type: Speaker level converter
Material: plastic+electronic components
Size: 86x46mm/3.3x1.8in
Quantity: 1 PC
Input voltage: 24V
output coltage: 12V
Adjustable level:0 to 2 volts
Stereos up to: 80 watts

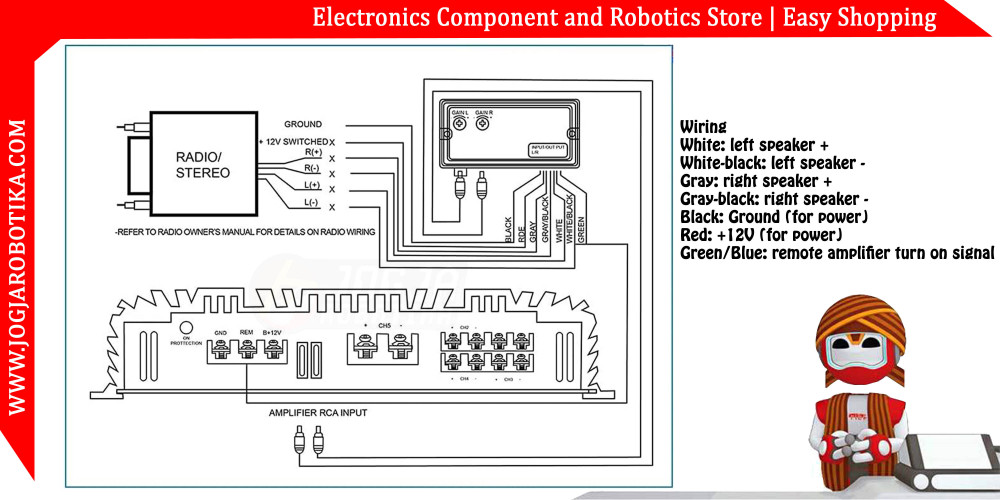

Instructions:
White Connect to left speaker positive
White black Connected to the left speaker negative
Gray Connect to right speaker
Gray black Connect to the right speaker negative
Pure black ground wire
Red Connect to 12V power supply (can be connected in parallel with the 12V power cable of the subwoofer)
Connect the blue control line (connect the terminal of the subwoofer)

Package Included:
1 x Speaker level converter
1 x Cable
