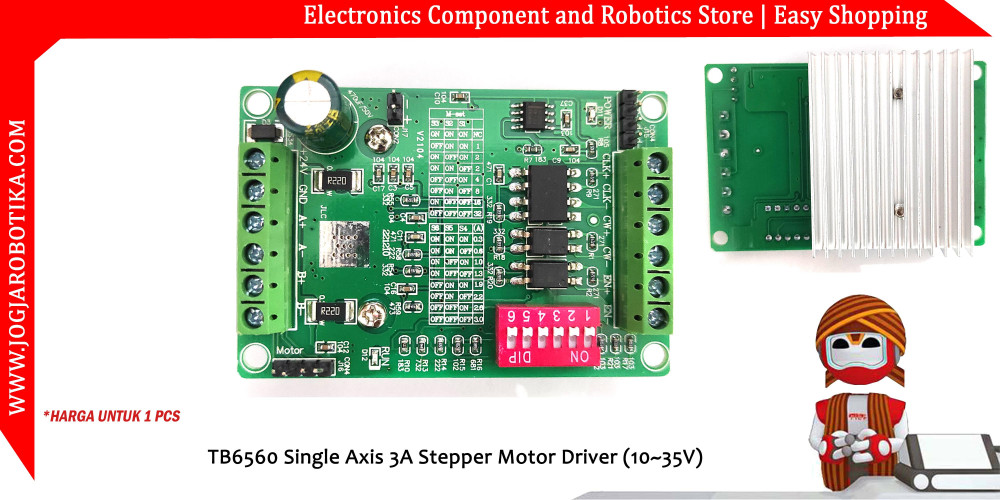

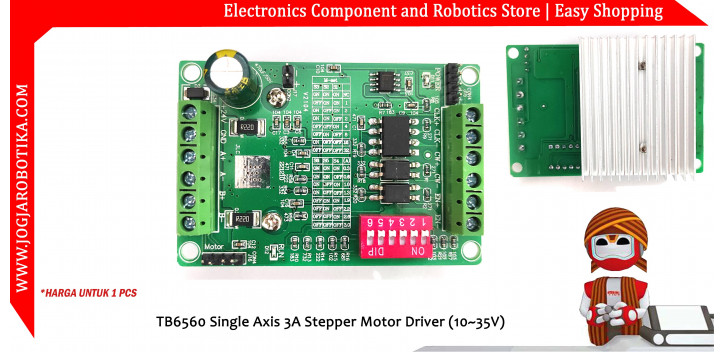

TB6560 Single Axis 3A Stepper Motor Driver (10~35V)

TB6560 Single Axis 3A Stepper Motor Driver (10~35V)

Features:
Working voltage DC 9V-36V, typical value 12V, 24V.
The use of 6N137 high-speed optical coupling to ensure high speed without losing step.
Using Toshiba's new original imported chips, there are low voltage shutdown, overheating shutdown and overcurrent protection circuits to ensure performance.
The rated output is: 3A
Two-phase/four-phase/four-wire/six-wire stepper motor suitable for 42,57 stepping within 4A
Automatic half-flow function.
Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, 1/32 step, 32 subdivision.
The current level can be adjusted step by step to meet your various application requirements.
The power supply is anti-reverse connection treatment, and the reverse connection will not burn.
The 6N137 high-speed optical lotus is used to ensure high speed without losing step.
The board printing instructions can be operated without manual.
Adopt thick and densely toothed radiator for good heat dissipation.
