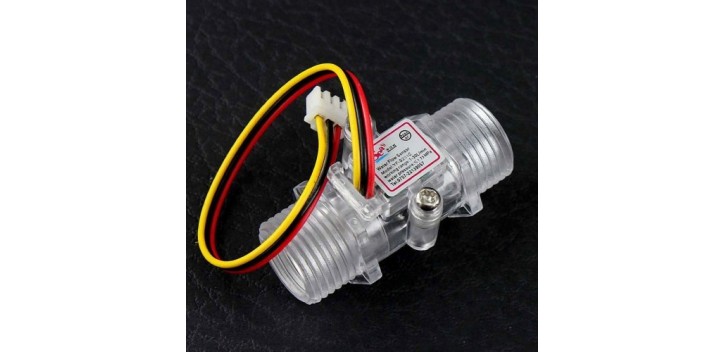

Water Flow Sensor YF-S201C

Water Flow Sensor YF-S201C

Connection:
Red: Positive(+)
Yellow: Signal output.
Black: Negative(-)

Specification:
Maximum operating current: 15 mA (DC 5V).
Working voltage range: DC 5~18 v.
Load capacity: ≤ 10 mA (DC 5V).
Work temperature: ≤ 80 ℃
Work humidity range: 35%~90%RH (no frost)
Allowing pressure: pressure 1.75Mpa
Storage temperature: -25~+80 ° c
Save humidity: 25%～95%RH
Flow Range :1-30L / min
External threads: Approx. 1/2"
Color: Transparent
