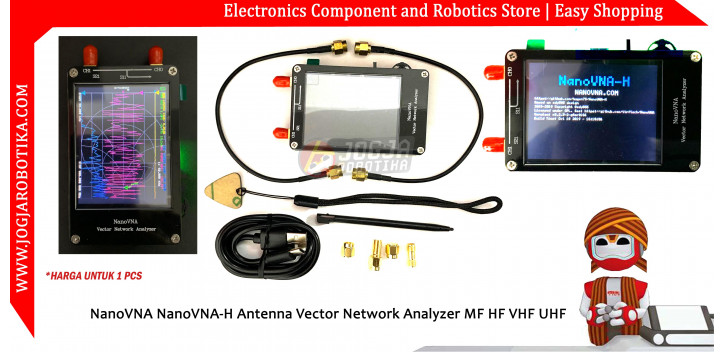

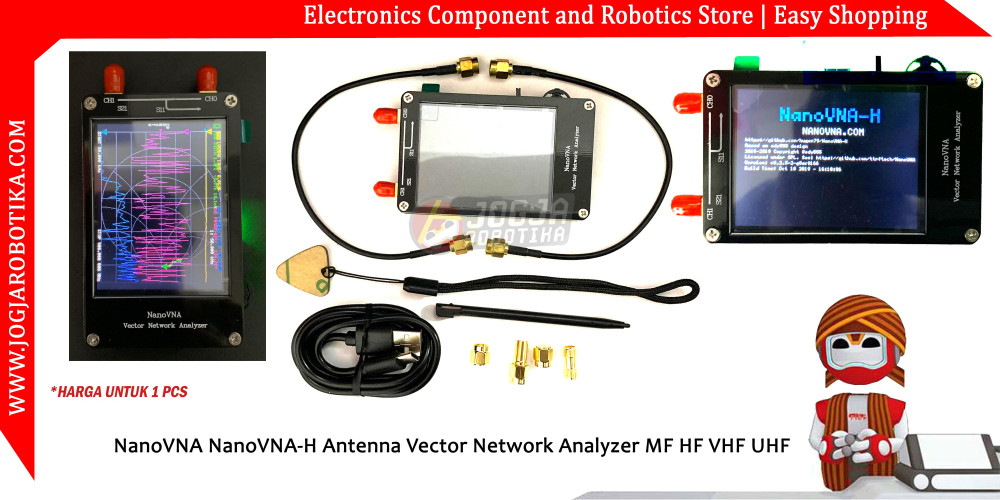

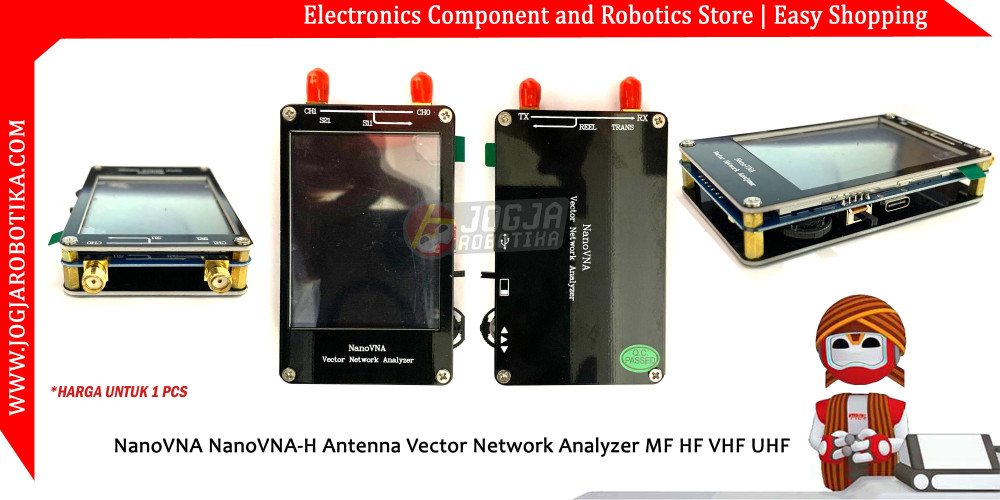

NanoVNA NanoVNA-H Antenna Vector Network Analyzer MF HF VHF UHF

NanoVNA NanoVNA-H Antenna Vector Network Antenna Analyzer MF HF VHF UHF

● Measurement frequency: 50KHz ~ 1.5GHz
● RF output: -13dBm (maximum -9dBm)
● Frequency accuracy: <2ppm
● Frequency stability: <0.5ppm
● Measurement range: ● Measurement range: 70dB(50kHz-300 MHz),(50dB (300M-900MHz), 40dB (900M-1500MHz));
● Port SWR: < 1.1

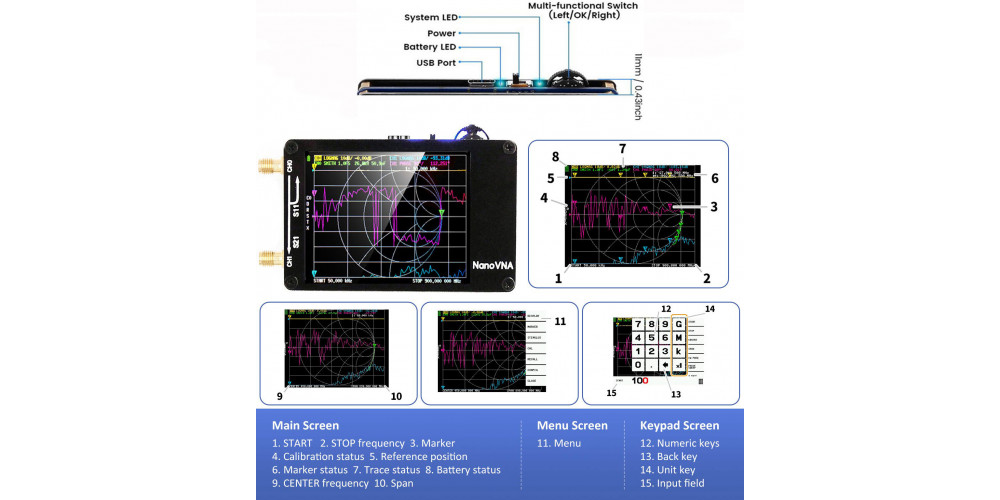

● Display: 2.8-inch TFT (320 x240）

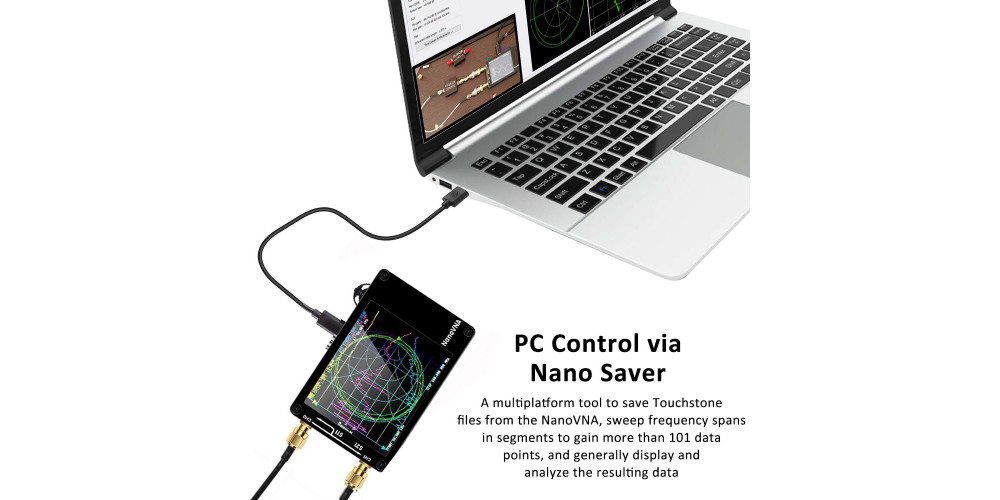

● USB interface: USB type-C Communication mode: CDC (serial)

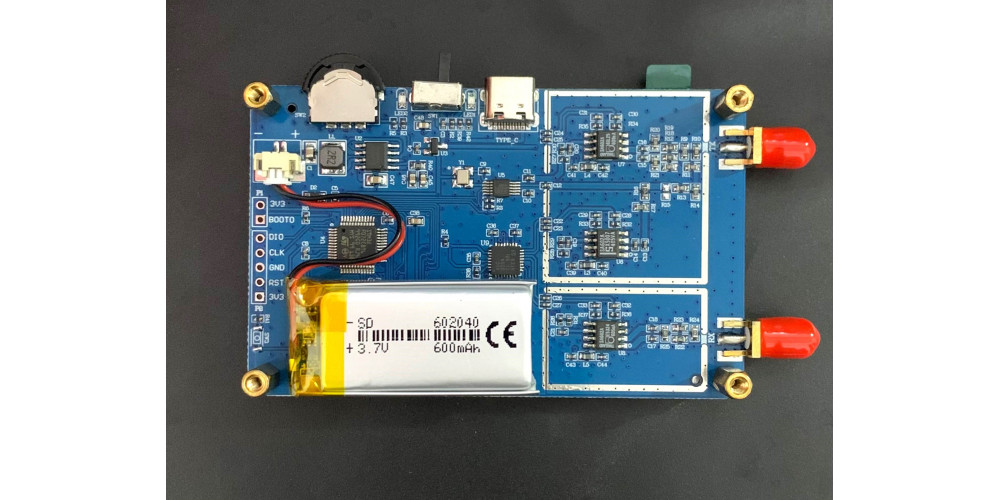

● Power supply: USB 5V 120mA, built-in 400mAh battery, maximum charging current 1A, can be used continuously for more than 4 hours
● Number of calibration points: 101 (fixed)
● Number of sweep points: 101 (fixed)
● Display tracking: 4, Markers: 4, Setup save: 5

NOTE : SPESIFIKASI KURANG JELAS SUPPORT FREKUENSI SAMPAI BERAPA, PERNAH KAMI COBA UBAH SAMPAI 1.5GHZ BISA, NAMUN KARENA KETERBATASAN ILMU DAN PERALATAN KAMI JADI KAMI TIDAK BISA TEST REAL MAX FREKUENSI. JADI ANGGAP SAJA UP TO 900Mhz

dokumentasi
https://nanovna.com/

https://github.com/hugen79/NanoVNA-H
