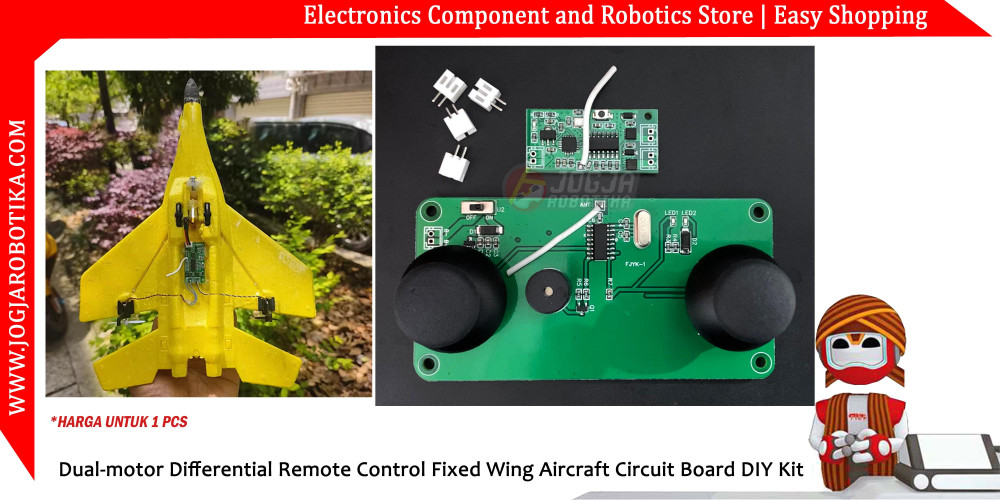

Dual-motor Differential Remote Control Fixed Wing Aircraft Circuit Board DIY Kit

Dual-motor Differential Remote Control Fixed Wing Aircraft Circuit Board DIY Kit

This kit's flight controller board can drive up to 4A per channel, suitable for most brushed model aircraft motors, such as coreless 412, 612, 716, 720, 816, 8520, and 1020, as well as common brushed motors like N20, N30, and N50. The aircraft features a gyroscope for stable flight and easy control, with relatively simple wiring, making it ideal for DIY projects. Other aircraft accessories need to be purchased separately.

Remote control frequency pairing: When the flight controller power is on, the indicator light flashes. When the remote control power is on, LED1 remains on, LED2 flashes, and a beep sounds. After 2 seconds, it will automatically pair with the flight controller. Once pairing is successful, the flight controller indicator light stays on. At this point, quickly push up or pull down the throttle; LED2 will then stay on, and you can control the aircraft. To re-pair with other remote controls, press the small button on the control panel.

Please refer to the images on the page for instructions on installing the flight controller.

Test if the flight controller board is installed correctly:

1. Push the throttle to check if the left and right motor propellers are blowing air backward. If not, swap the two wires of the motor.

2. Push the throttle slightly and turn the left and right joysticks. When turning left, the right motor accelerates, and when turning right, the left motor accelerates.

3. Hold the aircraft nose-forward with your hand, push the throttle slightly, and rotate the aircraft left and right around yourself as the center axis. When rotating to the left, the left motor will automatically increase power, and when moving to the right, the right motor will automatically increase power. This is the gyroscope's self-adjustment function. When installing the flight control board, the original side must face the ground; otherwise, the gyroscope's self-stabilization will be counterproductive.

When selecting flight controller batteries, it is important to choose according to the operating current of the dual motors. Sufficient capacity and discharge rate are required for normal use.

We have new items added to our store every day, so please keep an eye out if you enjoy DIY projects.

[Remote Control Voltage] DC 3-5V

Flight controller voltage: DC 3.7V

[Flight Controller Board Drive Current] ≤4A per channel

Flight controller board weight: 3 grams

[Remote control panel weight] 37 grams

Note : Untuk membuka kunci remote, push joystick kiri ke depan, tunggu beep minimal 2x lalu turunkan joystick ke bawah
