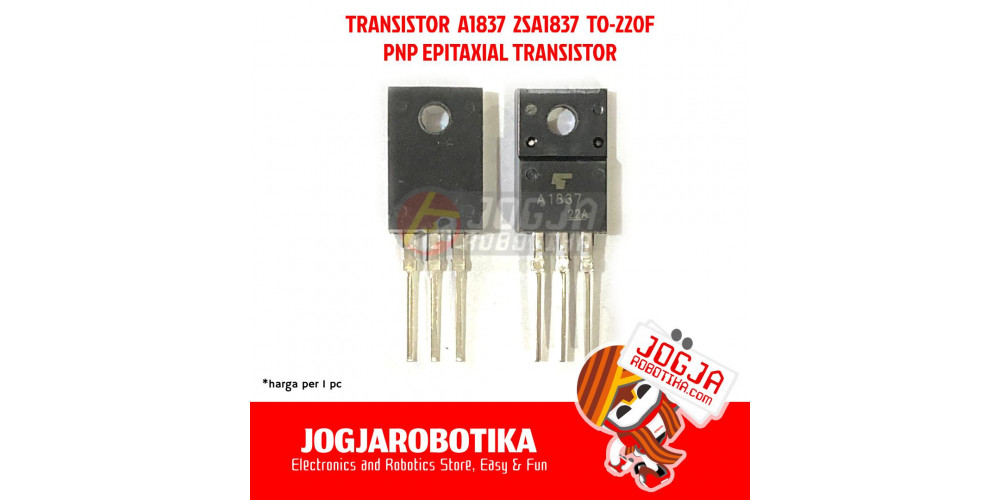

Transistor Tr A1837 2SA1837 A 1837 KEC PNP TO-220F

Transistor Tr A1837 2SA1837 A 1837 KEC PNP TO-220F

Type Designator: 2SA1837

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 20 W

Maximum Collector-Base Voltage |Vcb|: 230 V

Maximum Collector-Emitter Voltage |Vce|: 230 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 1 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 70 MHz

Collector Capacitance (Cc): 30 pF

Forward Current Transfer Ratio (hFE), MIN: 100

Noise Figure, dB: -

Package: TO220F
