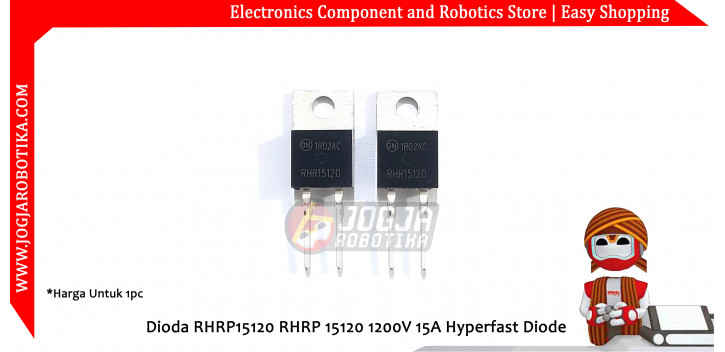

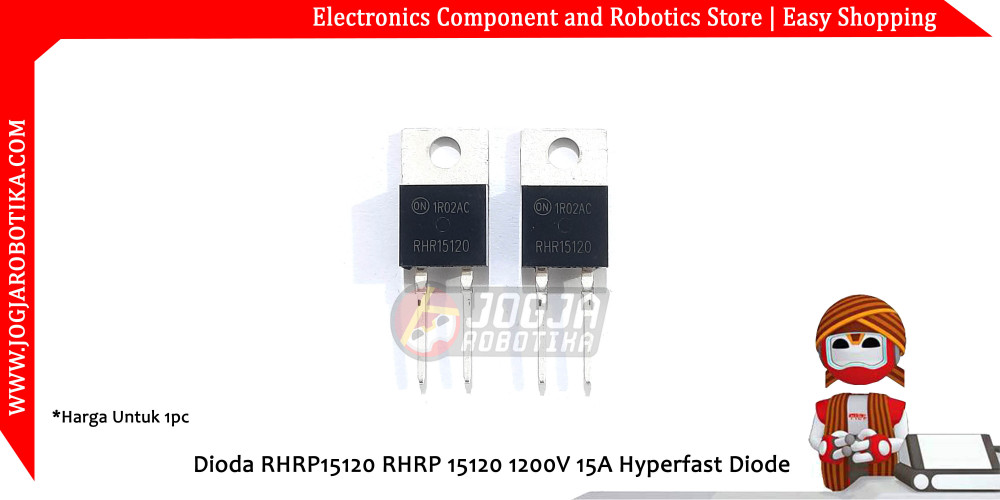

Dioda RHRP15120 RHRP 15120 1200V 15A Hyperfast Diode

P214

Baru

NEW & ORIGINAL PRODUCT

23 item

Rp. 25.000


JumlahHargaAnda menghemat
10 Rp. 24.000 Sampai dengan Rp. 10.000

Dioda RHRP15120 RHRP 15120 1200V 15A Hyperfast Diode

The RHRP15120 is a hyperfast diode with soft recovery
characteristics (trr < 65ns). It has half the recovery time of
ultrafast diodes and is of silicon nitride passivated
ion-implanted epitaxial planar construction.
This device is intended for use as a freewheeling/clamping
diode and rectifier in a variety of switching power supplies
and other power switching applications. Its low stored charge
and hyperfast soft recovery minimize ringing and electrical
noise in many power switching circuits, thus reducing power
loss in the switching transistors.
Formerly developmental type TA49098.

Features
• Hyperfast with Soft Recovery. . . . . . . . . . . . . . . . . . <65ns
• Operating Temperature . . . . . . . . . . . . . . . . . . . . . . 175oC
• Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1200V
• Avalanche Energy Rated
• Planar Construction
Applications
• Switching Power Supplies
• Power Switching Circuits
• General Purpose


Packaging
JEDEC TO-220AC
