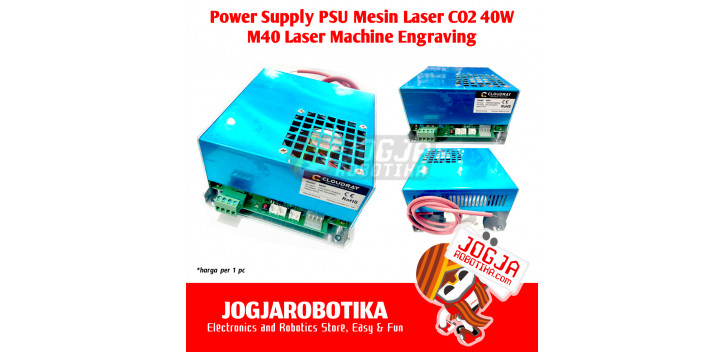

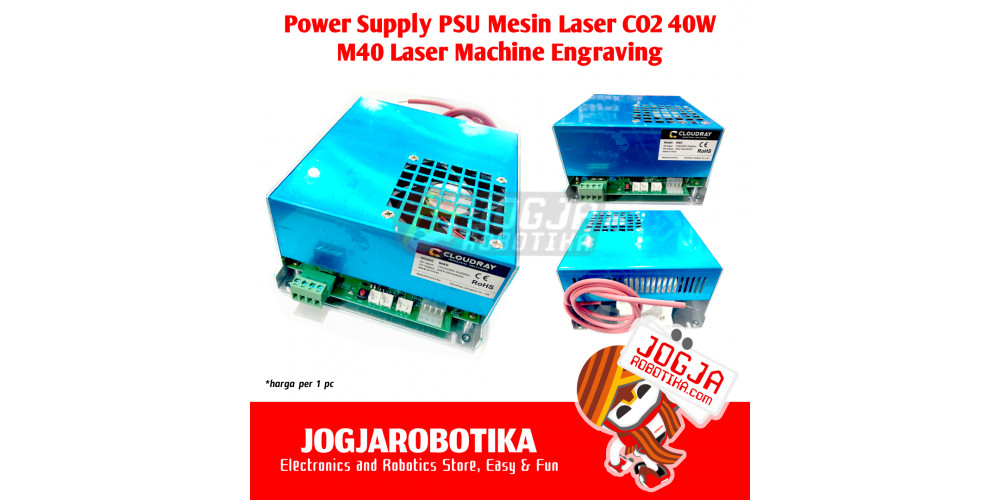

Power Supply PSU Mesin Laser CO2 MYJG-40WT 40W 40Watt M40 Laser Machine Engravin

B910

Baru

2 item

Pemberitahuan: Barang terakhir di stok!

Rp. 1.350.000


Power Supply PSU Mesin Laser CO2 MYJG-40WT 40W 40Watt M40 Laser Machine Engravin

Specifications:
Input Voltage : AC 220V / AC 110V(Adjust with Switch)
AC frequency : 47- 440HZ
Max Input power : 250W
Max Input current : ЗА
Max output voltage : DC20KV
Max output current : DC20mA
Efficiency : >/-90%(Full load)
MTBF : >/10000 Hours
Response speed : 1ms (Time from the TTL Signal is given to the output current up to 90% pre-setting current)
Withstand Voltage : Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure
Environment : Operating temperature (-10-40)degree Celsius,Relative humidity:90%
Cooling : Force-Air Cooling(FAC)

Features:
Easy Control
Manually TEST button TTL level control
High Performance Long Life
Quick response Output open circuit protection
Good Compatibility
Applicable to various 35-50W laser tube
110 / 220V Adjustable
