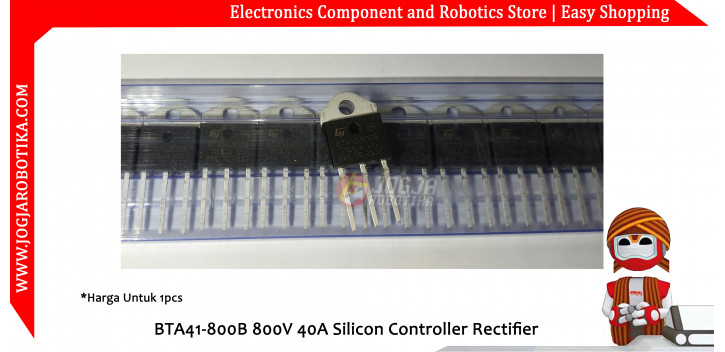

BTA41-800B 800V 40A Silicon Controller Rectifier

BTA41-800B 800V 40A Silicon Controller Rectifier

Datasheet...

Descirption:
Available in high power packages, the BTA/BTB40-41 series is suitable for general purpose AC switching. They can be used as an ON/OFF
function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers.

Feature:
Non Repetitive On-State Current:315 A
Rated Repetitive Off-State Voltage VDRM:800 V
Off-State Leakage Current @ VDRM IDRM:5 uA
On-State Voltage:1.8 V
Holding Current Ih Max:80 mA
Gate Trigger Voltage - Vgt:1.5 V
Gate Trigger Current - Igt:100 mA
