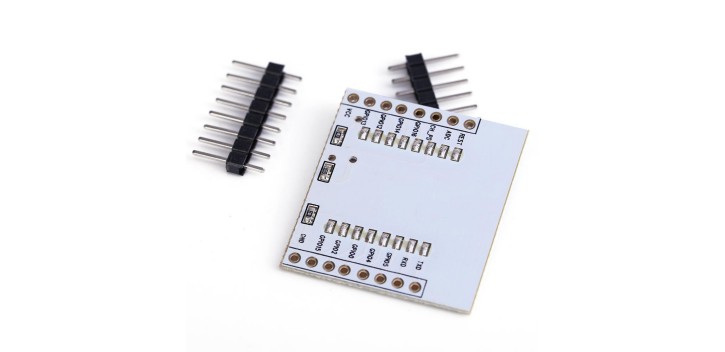

ESP8266 Adapter Plate for ESP-07 ESP-08 ESP-12

ESP8266 Adapter Plate for ESP-07 ESP-08 ESP-12

Description:

With this test board, you may not need to use any other development tools, AT the AT ESP8266 modules class applications with the SDK.
The application development, can be directly burning board MCU. Also can burn to write  ESP8266 built-in SOC to application SDK.
Simple demonstration function: made a control interface, the android mobile phone WIFI and onboard WIFI data interaction,
Keep the cell phone control board  WIFI output data, on-board CPU control panel mount three color lamp, after receipt of the data, relay and a buzzer.

Size:

IO adapter plate: Approx: 30 x 28mm (L x W)
ESP-07: 22 x 16mm (L x W)
