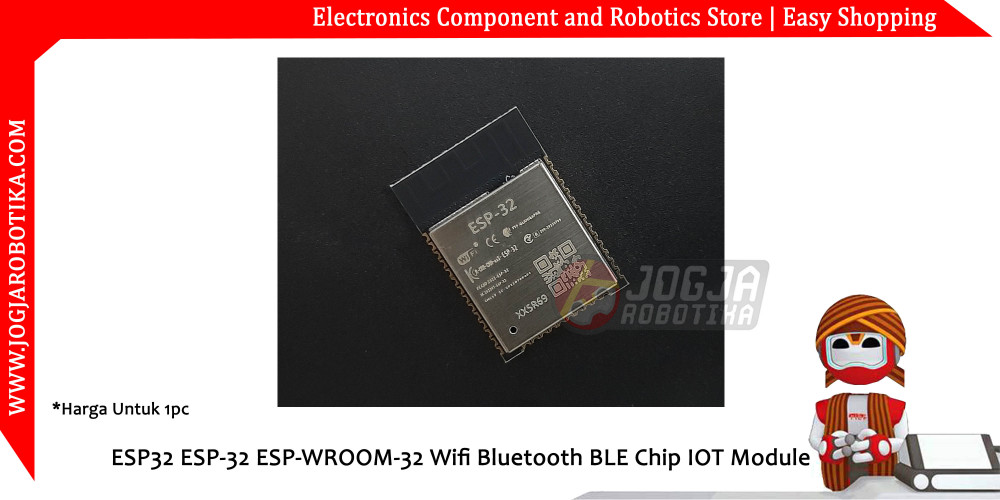

ESP32 ESP-32 ESP-WROOM-32 Wifi Bluetooth BLE Chip IOT Module

ESP32 ESP-32 ESP-WROOM-32 Wifi Bluetooth BLE Chip IOT Module

The ESP32 (ESP32-D0WDQ6), located inside of the ESP-WROOM-32 module, is the latest addition to the family of IoT solutions developed by Espressif Systems. The ESP32 is a single 2.4 GHz Wi-Fi and Bluetooth integrated SoC designed with TSMC ultra-low-power 40 nm technology. It is designed to achieve the best power and RF performance, showing robustness, versatility and reliability in a wide variety of applications and different power profiles.

The ESP32 integrates a rich set of peripherals such as capacitive touch sensors, Hall sensors, low-noise sense amplifiers, SD card interface, Ethernet, high-speed SPI, UART, I2S, and I2C. This ESP-WROOM-32 module includes some necessary components for the ESP32 to operate correctly such as an onboard antenna (~–80dBm @50ft) and 4MB of flash memory. The module makes it easy to develop products around the ESP32 SoC.

Features:
FCC/CE/IC/TELEC/KCC/SRRC/NCC Certified
SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, GPIO, capacitive touch sensor, ADC, DAC, LNA preamplifier, and IR interfaces
Onboard copper-trace antenna (Meandered Inverted-F Antenna (MIFA))
Integrated TCP/IP stack
38 castellated-pin 2mm-pitch configuration

Specifications:
Supported protocols: 802.11 1 b/g/n/e/i
Serial/UART baud rate: 115200bps
Input voltage: 3.3V
Max I/O voltage: 3.6V
Regular operation current draw: ~70mA
Current draw (peak): ~300mA
Power-down leakage current: <10µA
Output power: +19.5dBm (802.11b)
Flash Memory Size: 4MB (32Mbit)
WiFi security modes: WPA/WPA2/WPA2-Enterprise/WPS
