Product introduction:

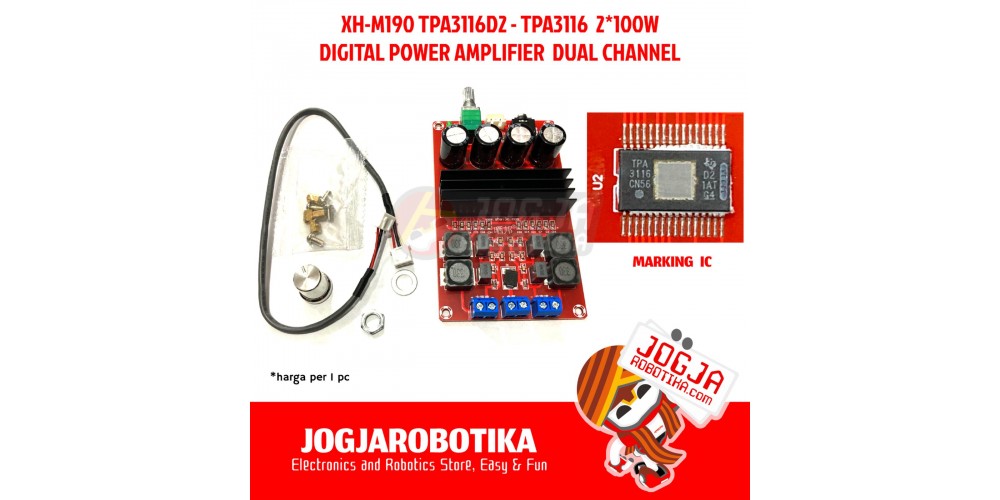

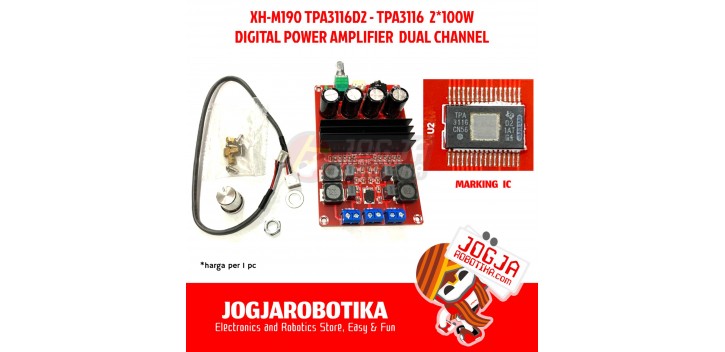

This power amplifier board adopts TPA3116D2 as the core, and the official data is 50W*2. The engineers read the data and combine their own experience to develop 50W*2 by bridge. The theory can reach 100W*2.
Since the chip is a digital chip, the efficiency is extremely high by more than 90%, so it has the advantages of large power and small heat. The power supply is recommended to be powered by a DC power supply of 12-24V or more. The board is available for the finished board and is connected to the power supply. And the speaker can check out the new experience brought by pure digital music!
Product parameters:
Chip selection: TPA3116
Input power: DC12-24V
Output power: 2*100W
Input resistance: 51K*2
Output matching: 4-8 Euro
Frequency response range: 14-100Kz
SQ: 100db
Output channel: 2 (left channel + right channel)
Appearance size: 105*65*23mm
Product net weight: 85g
