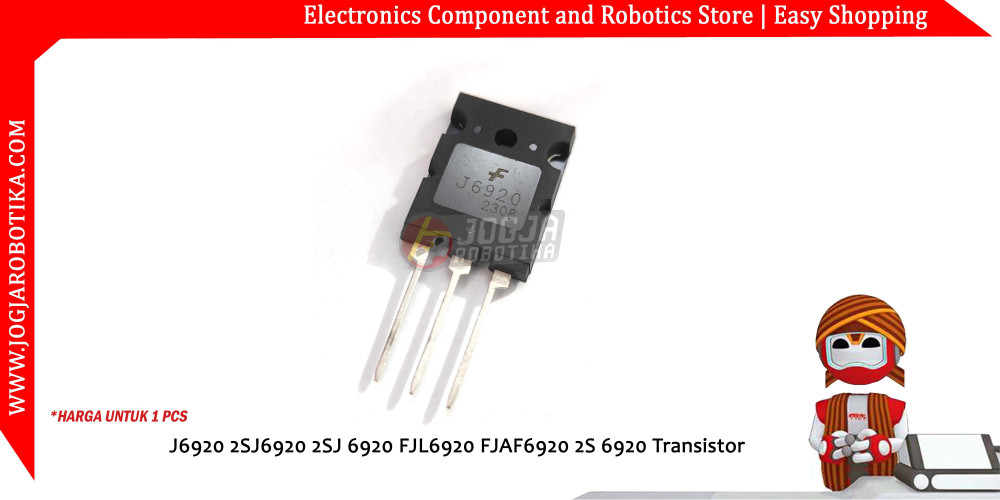

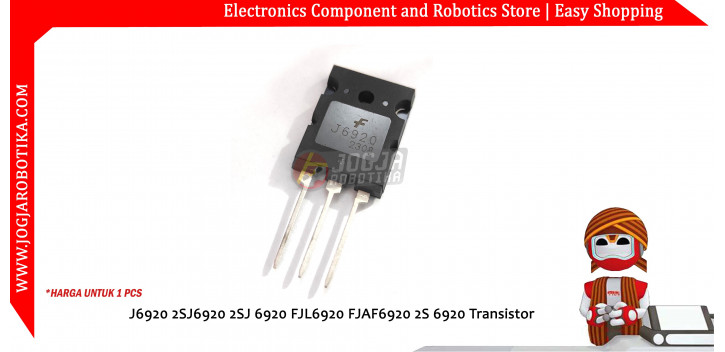

J6920 2SJ6920 2SJ 6920 FJL6920 FJAF6920 2S 6920 Transistor

J6920 2SJ6920 2SJ 6920 FJL6920 FJAF6920 2S 6920 Transistor

Description :

NPN Triple Diffused Planar Silicon Transistor, High Voltage Color Display Horizontal Deflection Output

Features

1. High Collector-Base Breakdown Voltage : BVCBO= 1700V

2. Low Saturation Voltage : VCE(sat) = 3V (Max.)

3. For Color Monitor

Absolute maximum ratings ( Ta=25°C )

1. Collector to Base Voltage : Vcbo = 1700 V
2. Collector to Emitter Voltage : Vceo = 800 V
3. Emitter to Base Voltage : Vebo = 6 V
4. Collector Current : Ic = 20 A
5. Total Dissipation : Pc = 200 W
6. Junction Temperature : Tj = 150°C
7. Storage Temperatue : Tsg = -55 ~ +150°C

datasheet
